Location:
Dundee, FL
Model:

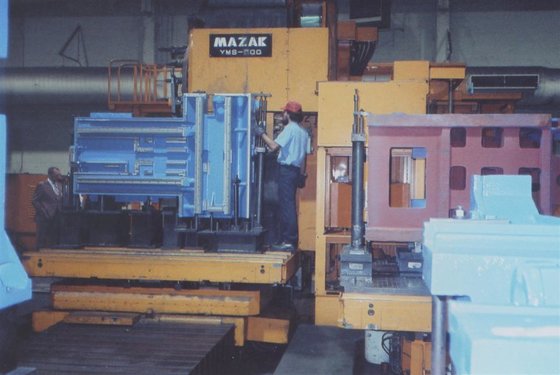

YMS-H50Q Mazatrol M2

Specifications

Condition:
used
Year:
1986
Equipment:
2 Pallet Changer System Traveling Column Design Coolant Thru the Spindle Right Angle Head 15 Station Right Angle Changer 3 Extra Pallets 2 Operating Stands Air Blast Chiller Unit Adaptive Feedrate Control Tool life Monitoring Tool Breakage Detection Oil Mist Coolant $70,000 Of Brand New Tooling Machine has been in storage since 1992 Never Reassembled after purchasing used
Spindle nose:
CAT # 50
Machine weight:
103,600 lbs.
Spindle speeds:
10 - 1,600 RPM
Pallet indexing:
90 Degree Index
Table load capacity:
17,600 lbs.
X-axis travel (cross):
160"
Tool magazine capacity:
60 Total (2 x 30 Pos.)
W-axis travel (spindle):
29.5"
Machine dimensions lxwxh:
480"x440"x205"
Y-axis travel (vertical):
78.7"
Rapid traverse x, y / z / w:
590 / 470 / 354 IPM
Electrical power requirement:
115 kVa
Max. tool diam/length/weight:
9.45"/17.7"/66 lbs.
Spindle motor 30 min. / cont.:
50 HP / 30 HP
Z-axis travel (column in/out):
39.37"
Pallet size / number of pallets:
62"x118"/ 2 plts
Dist. from spindle center to plt top:
3" - 67"

Description

2 Pallet Changer System
Traveling Column Design
Coolant Thru the Spindle
Right Angle Head
15 Station Right Angle Changer
3 Extra Pallets
2 Operating Stands Air Blast
Chiller Unit
Adaptive Feedrate Control
Tool life Monitoring
Tool Breakage Detection
Oil Mist Coolant
$70,000 Of Brand New Tooling
Machine has been in storage since 1992
Never Reassembled after purchasing used
