Location:
Dundee, FL
Model:
H400N FMS (4) Machines, (75) Pallets Mazatrol M32 Conversational
Spindle Taper:
CAT #40

Specifications

Condition:
used
Year:
1995
Equipment:
120 Position ATC/each (4) H400N Machines (75) Pallets in FMS 25,000 RPM Spindles/each Full 4th Axis Rotary Tables EIA/ISO Input Function Chip Conveyor Adaptive Feedrate Controls Rigid Tapping Automatic Tool Length Measurement Tool Breakage Detection Tool Life Monitoring Flood Coolant Tool Presetter All Retention Studs for Holding Offsets
Spindle motor:
15 HP
Spindle speed:
30 ~ 25,000 RPM
Spindle taper:
CAT #40
X-axis travel:
22.05"
Y-axis travel:
20.08"
Z-axis travel:
20.08"
Machine weight:
19,800 lbs.
Rapid traverse:
1180 IPM
Spindle torque:
190 ft./lbs
Table indexing:
.001 Degree
Table load capacity:
880 lbs.
Tool magazine capacity:
120 Position ATC
Machine dimensions-machine only:
127"x98"x99"
Pallet size / number of pallets:
15.75" x 15.75"/75 Plts.

Description

120 Position ATC/ Each

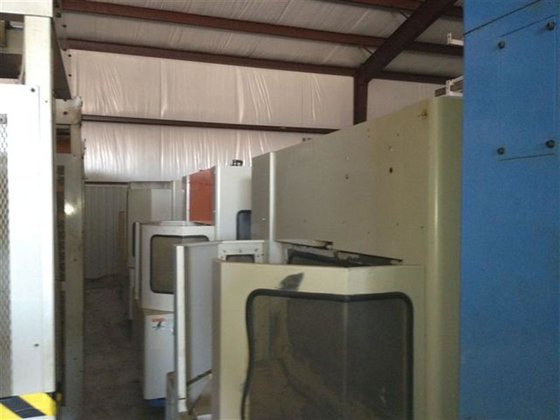

(4) H400N Machines
(75) Pallets in FMS
25,000 RPM Spindles/each
Full 4th Axis Rotary Tables
EIA/ISO Input Function
Chip Conveyor
Adaptive Feedrate Controls
Rigid Tapping
Automatic Tool Length Measurement
Tool Breakage Detection
Tool Life Monitoring
Flood Coolant
Tool Presetter
All Retention Studs for Holding Offsets
