31" x 120" cc, Leblond,
Location:
Salt Lake City, UT
Manufacturer:
Leblond lathes
Spindle Bore:
2-1/8”
Spindle Nose:
L3

Specifications

Condition:
used
Stock number:
597
Feeds:
56 changesfrom .008 to 250 IPR
Threads:
56 changesfrom 3/8” to 46 TPI
Division:
Metalworking
Main motor:
20 HP
Spindle bore:
2-1/8”
Spindle nose:
L3
Width of bed:
17”
Approx. weight:
13,500 LBS
Spindle speeds:
16 changesfrom 6.5 to 400 RPM
Swing over bed:
31”
Tailstock taper:
#6 MT
Swing over slide:
19.5”
Approx. dimensions:
19’ L x 7’ W x 5’ H
Max center distance:
120”
Subcategory:
Lathes, engine

Description

We are pleased to offer, subject to prior sale and our conditions of sale, the following for your consideration:

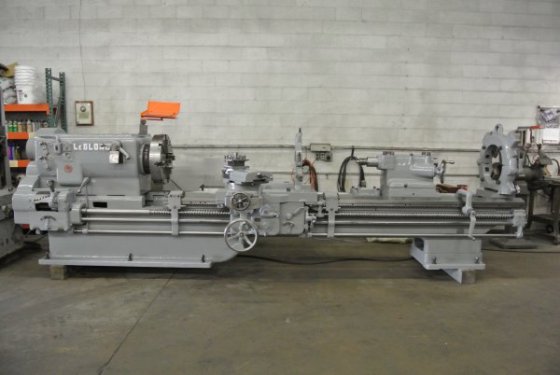

Pre-Owned Leblond 31x120 NI Lathe
Serial No NI1005
General specifications are approximate and are subject to verification.
Swing over bed:31”
Swing over slide:19.5”
Swing over gap:44” Gap: 17” Long
Max center distance:120”
Spindle nose:L3
Spindle bore:2-1/8”
Spindle speeds: 16 changesfrom 6.5 to 400 RPM
Tailstock taper:#6 MT
Width of bed:17”
Threads: 56 changesfrom 3/8” to 46 TPI
Feeds:56 changesfrom .008 to 250 IPR
Main motor:20 HP
Approx. Weight:13,500 LBS
Approx. Dimensions:19’ L x 7’ W x 5’ H
Complete with:
•22” 4 Jaw Chuck
•Hardened Ways
•4-Way Tool Block
•Taper Attachment w/ Clamp
•Steady Rest 9” and 17” Holes
