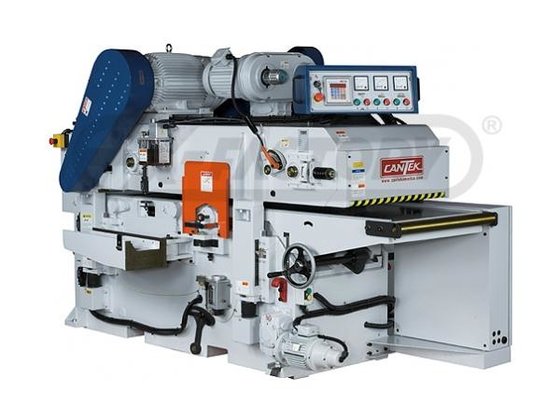

2016 CANTEK GT-635ARD-20 STRAIGHTENING PLANER/FACER
Location:
United States
Manufacturer:
Cantek
Model:
GT-635ARD-20
Elect./Voltage:
230/460 V, 60 Cy, 3 Ph.

Specifications

Condition:
new
Year:
2016
Recnum:
PD-010593
Comments:
25" wide x 20" thickness capacity!!! Have you seen anything like tHis???
Machtype:
STRAIGHTENING PLANER/FACER
Condition info:
Brand New w/Warranty
Current status:
Brand New
Elect./voltage:
230/460 V, 60 Cy, 3 Ph.
Appr. repl. cost:
40000

Description

25" WIDTH x 20" THICKNESS CAPACITY. With 12.2" min. length; 20 HP TEFC bottom jointing head motor; 25 HP TEFC top planing head motor; 5 HP feed motor with variable speeds from 23 to 65 FPM (faster speeds optional); 1/2 HP table elevation motor; 4" dia. cutterheads with 30mmx12mmx1.5mm insert carbide knives (180 pcs. total); 5,400 RPM cutterhead speed; with (2) 6" diameter dust outlets. Table size is 27" x 103" x 32" high and overall dimensions are 105" x 45.1" x 67.7"; Net Weight - 8" opening - 6,600 lbs., 16" opening - 7,250 lbs., 20" opening, 7,800 lbs., and 24" opening, 8,200 lbs. __ Standard features include: __ Heavy duty cast-iron machine body and table for vibration-free running __ Cutterheads are spiral insert type with six (6) rows of carbide inserts. These cutterheads produce an excellent finish, run much quieter than conventional straight knife heads, and require less HP to perform the planing operation. The inserts are an industry standard item, and have two (2) cutting edges __ Conveyor feed system uses a spring loaded pin arrangement to pass material over the bottom jointing head. A driven rubber top roll, after the top head, delivers the material out of the machine __ Infeed bed roller - idle __ (3) Bottom Full Width Bed Rolls (2 driven and 1 idle) also included - improves feeding of difficult materials __ Digital electronic thickness adjustment in INCH and MM. Inch is to 3-deicimal places __ Opening of the machine is motorized, and driven by a 1/2 HP TEFC motor __ Swiveling control panel for more ergonomic access to machine controls (Not shown) __ Easy to access external handwheel adjustment of infeed bed __ The Table surface is hard chrome plated and precision ground for smooth performance and maximum wear resistance at high speeds __ A hand lubricator is provided for convenient lubrication to the table slide ways and an auto lubricator provides lubrication to the caterpillar feed chain __ Chipbreaker and top feed roller into top head is sectional __ Rubber outfeed top roller to prevent chip marking __ Over thickness safety shut-off bar across infeed __ Ammeter for each motor on control panel to monitor motor load __ Side covers to protect operator around bottom head __ Star Delta soft start __ Isolator switch to shut off power to control panel for added safety __ Electrics 230/460 or 575/3/60 to UL/CSA Standards or 380/3/50 if desired
