2016 LEADERMAC LMC-101-900MM-35.4' ROLL FEED

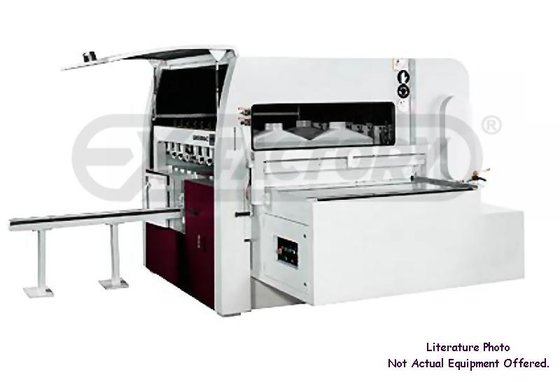

2016 LEADERMAC LMC-101-900MM-35.4' ROLL FEED GANG RIP SAW [RG-010996] in United States

Location:
United States
Manufacturer:
LEADERMAC
Model:
LMC-101-900MM-35.4'

Specifications

Condition:
new
Year:
2016
Recnum:
RG-010996
Comments:
36" wide & 4" depth of cut and roll feed too!
Machtype:
ROLL FEED GANG RIP SAW
Condition info:
Brand New w/Warranty
Current status:
Brand New
Elect./voltage:
230/460 V, 60 Cy, 3 Ph.
Appr. repl. cost:
85000

Description

.6" TO 34.5" width x .4 to 4" thickness capacity with 16" dia. sawblades. With 1 HP raise/lower motor, 7.5 HP feed motor (larger avail.) with speeds from 20 to 100 FPM. __ 100 FPM max. speed and 4" cutting depth normally adds $8,165 to the base price shown; 200 FPM optional. __ 3.15 (80mm) spindle dia. with double keys operates at 3,200 RPM powered by 75 HP motor. Spindle with hydro-Loc bearing at outboard end; slides out of machine for quick and accurate saw setting. __ Frame is stress relieved; sound & safety enclosure with internal lighting; infeed table hardened and chromed. __ Variable pressure to top feed rolls; feed roll drive by Cardan shaft drive with heavy duty gearboxes; (8) sets powered top and (6) sets bottom powered and full width rolls powered by heavy duty variable frequency drive. Arbor motor with Wye-Delta low amp starters. Complete with (8) 6" (150) mm dust hoods, (4) top and (4) bottom, documentation includes maintenance manuals, operator's manual, electrical schematics, and detailed parts list. __ Available as optional equipment: __ 100 HP arbor motor, 200 FPM top speed. __ Call Jeff Terrill @ Ext 349 for pricing
