Location:
Bensenville, IL
Manufacturer:
Precision Stainless
Model:
400L

Specifications

Condition:
used
Stock number:
46371017
Gallons:
105
Jacket psi:
90
Interior psi:
40

Description

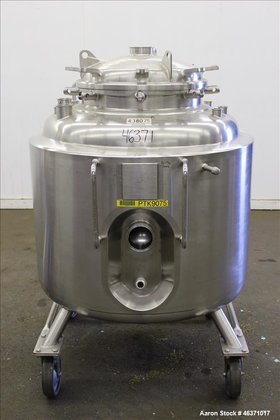

46371017 Used- Precision Stainless Reactor, 400 Liter (105 Gallon), 316L Stainless Steel, Vertical. 36" Diameter x 24" straight side, dished top and bottom heads. Internal rated 40 psi at -20 to 300 degrees F, vacuum design 14.7 psi. 304L Stainless steel dimple jacket rated 90 psi at -20 to 300 degrees F. Openings: top (1) 22" diameter manway with 4" tri-clamp in the cover, (6) 1-1/2" tri-clamp, (2) 2-1/2" tri-clamp; side 4" tri-clamp, 1-1/2" tri-clamp; 1-1/2" center bottom outlet. Mounted on 4 stainless steel legs with casters. Serial #5458-1. National Board #3691. Built 1991.
