Location:
Lincolnwood, IL

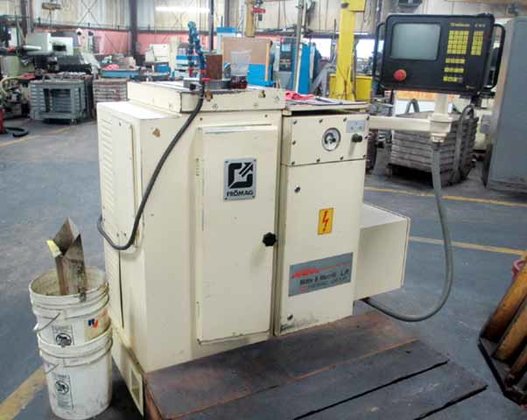

Manufacturer:
Fromag
Model:
70/425 Combi Ra
Weight:
3700 lbs / 1660kG

Specifications

Condition:
used
Year:
1992
Stock number:
bro70x
Keyway width:
.011"-2.75" / 3-70mm
Bore diameter:
.051"-19.68" / 10-500mm
Operating height:
45.07" / 1145mm
Table dimensions:
18.11" LR x 27.16"FB 460mm LR x 690mm FB
Approximate weight:
3700 lbs / 1660kG
Maximum keyway length:
16.7" / 425mm
Return speed (constant):
157 IPM / 40m/min
Maximum cutting and pulling force:
30N
Cutting speed (infinitely variable):
0-86 IPM / 0-22m/min
Feed rate from 0.01 to maximum (digital preselectable):
1.96" / 50mm
Subcategory:
Broach
Subcategory 2:
Keyseater

Description

Equipped With:
Large Quantity Of Tooling Including Tool Clamps, Centering Fixtures, Tool Posts, Tool Bars and Other Miscellaneous Tooling.
