Location:
Laval, Canada
Manufacturer:
STEWART GLAPAT CORP.

Specifications

Condition:
used
Stock number:
003699
Speed:
40' PER MINUTE,
Subcategory:
Belt

Description

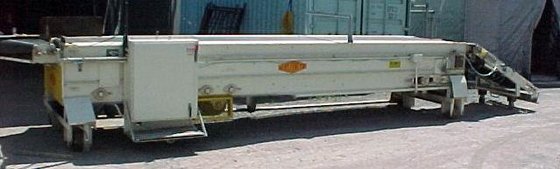

RETRACTED LENGTH: 19'6" PLUS 4'6" TANDEM BOOM,
MODEL #2065T 24 STP B, SERIAL #927 828,
OVERALL HEIGHT: 47",
SPEED OF CONVEYOR: 40' PER MINUTE,
BELT: 24" WIDE, MADE OF PVC 120 COS (GEORGIA DUCK),
CONVEYOR ON WHEELS TO TRANSVERSE FLOOR,
CONVEYOR PULL LOAD 40 LB. PER FOOT,
CONVEYOR STRUCTURAL LOAD 100 LB. PER FOOT,
MAIN MOTOR: 3 H.P., 575 VOLT, 1750 RPM,
WITH GEAR BOX RATIO 61.1 : 1,
EXTENDED & RETRACT MOTOR: 1 H.P., 575 VOLT,
1745 RPM WITH GEAR BOX RATIO 85.5 : 1,
TRANSVERSE DRIVE MOTOR: 0.75 H.P., 575 VOLT, 1750 RPM
WITH GEAR BOX RATIO 57.0 : 1,
