Location:
Laval, Canada
Model:
74C/25, SERIAL #171174

Specifications

Condition:
used
Stock number:
003318
Dimensions:
7'6" DIA. X 5'8" HIGH (T
Top openings:
NPT, TWO

Description

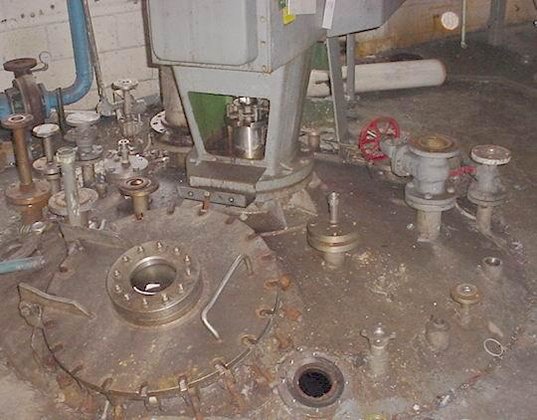

JACKET COVERS 7'6" HIGH FROM THE BOTTOM OF THE REACTOR,
FOUR (4) BAFFLES: 7.5" X 7'5" X 0.250"
REACTOR THICKNESS:
SHELL, TOP DISH: 0.312",
SHELL, SIDE: 0.375",
SHELL, BOTTOM HEMISPHERICAL DISH: 0.500"
JACKET: 0.250",
VESSEL 30 PSI AND FV
JACKET RATED 50 PSI
REACTOR HAS SIDE SUPPORTS FOR A MEZZANINE,
MFG.: RAY BOULGER STEEL FAB., SERIAL #C 4264 B,
CRN #H 8138.5, OIN #5.533343, YR.: 1986,
MIXER: TOP ENTRY, LIGHTNIN, 25 H.P., FOUR (4) SPEED MIXER
MODEL: 74C/25, SERIAL #171174,
MOTOR: WESTINGHOUSE, 365 T FRAME, 575 VOLT, "EXPLOSION PROOF",
25 H.P., 1730 RPM, 24 AMPS,
16.7 H.P., 1160 RPM, 17 AMPS,
12.5 H.P., 885 RPM, 16 AMPS,
8.3 H.P., 535 RPM, 14 AMPS,
SHAFT: 2.5" DIAMETER X 7'6" LONG,
THREE (3) PROPELLERS,
TWO (2) 44" DIAMETER, CLASSIC STYLE, 4 BLADE,
ONE (1) 24" DIAMETER, 3 BLADE,
FINAL OUTPUT RPM'S: 100/68/50/34,
WEIGHT APPROX.: 15,000 LBS,
OVERALL LENGTH SHIPPING: 16',
