Location:
Bensenville, IL
Manufacturer:
Kennedy

Specifications

Condition:
used
Serial number:
926107C
Stock number:
46532006
Gallons:
4700
Presfulvac:
250
Subcategory 2:
Stainless steel tanks

Description

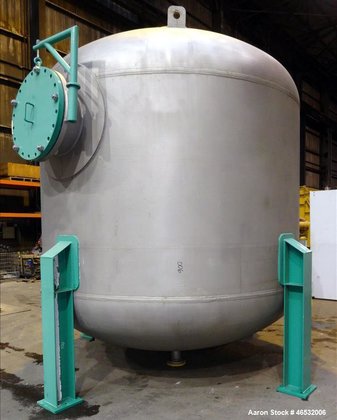

46532006 Unused- Graver Water Systems Approximate 4700 Gallon Cation Vessel Ion Exchange Column Tank. Manufactured by Kennedy Tank, 316/316L stainless steel, vertical. 120" Diameter x 76" straight side, 2:1 elliptical top and bottom. Internal rated 250 psi at -20 to 135 degrees F. Openings top 12" service inlet, 4" resin transfer inlet, side top 24" man way with a carbon steel davit arm, 1" NTP test connection, (2) 3" NTP grout filling, (2) 4" sight glass, 12" tangential service outlet, bottom (2) 4" resin transfer outlet, 1" NTP tell-tale drain. Mounted on 4 carbon steel I-Beam legs. National Board# 7987, serial# 9261-07C, built 2009.
