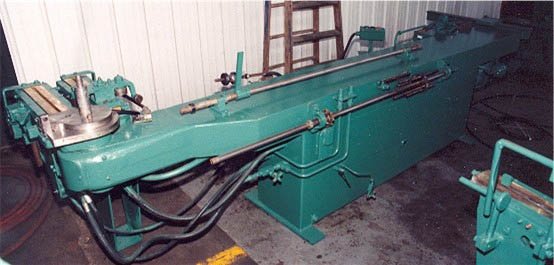

Pines #1 in Holland, OH, USA

Location:
Holland, OH, USA
Price:
No price
Model:
#1

Specifications

Condition:
used
Serial number:
11045-66245
Stock number:
19436
Bending capacity motor:
5 HORSEPOWER
Bending capacity bending arm:
22-1/4"
Bending capacity hydraulic clamping:
YES
Bending capacity max bending radius:
18"
Bending capacity steel pipe schedule:
80 - 1"
Bending capacity (3) button pilot control:
YES
Bending capacity ss tube up to 60,000 psi:
1-3/8" OD X .065" WALL
Bending capacity counterclockwise rotation:
YES
Bending capacity steel tube up to 40000 psi:
1-3/4" OD X .072" WALL
Bending capacity max tube length over mandrel:
9'11"
Bending capacity steel bar rd up to 40,000 psi:
7/8" DIAMETER
Bending capacity non-ferrous tube yp to 25000 psi:
1-3/4" OD X .120" WALL
Bending capacity 8-position degree of bend (manual):
YES
Subcategory:
All
Subcategory 2:
Benders

Description

SERIAL NUMBER ....................... 11045-66245
MODEL ............................... #1

BENDING CAPACITY:
NON-FERROUS TUBE YP TO 25000 PSI .... 1-3/4" OD X .120" WALL
STEEL TUBE UP TO 40000 PSI .......... 1-3/4" OD X .072" WALL
STEEL PIPE SCHEDULE ................. 80 - 1"
STEEL BAR RD UP TO 40,000 PSI ....... 7/8" DIAMETER
SS TUBE UP TO 60,000 PSI ............ 1-3/8" OD X .065" WALL
MAX TUBE LENGTH OVER MANDREL ........ 9'11"
BENDING ARM ......................... 22-1/4"
MAX BENDING RADIUS .................. 18"
HYDRAULIC CLAMPING .................. YES
(3) BUTTON PILOT CONTROL ............ YES
8-POSITION DEGREE OF BEND (MANUAL) .. YES
COUNTERCLOCKWISE ROTATION ........... YES
MOTOR ............................... 5 HORSEPOWER
