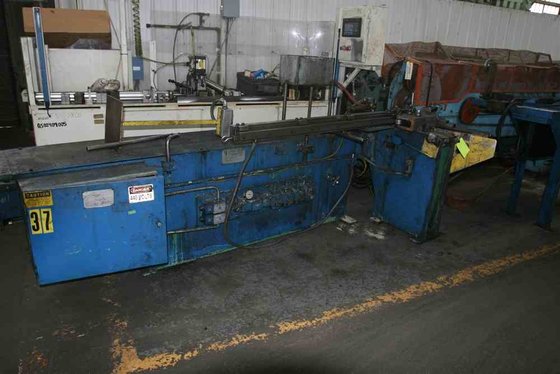

Pines 2 3" MODEL #
Location:
Holland, OH
Model:
2

Specifications

Condition:
used
Serial number:
11245-64179
Stock number:
52444
Motor:
7-1/2 HORSEPOWER
Bending arm:
30"
Maximum radius:
12"
Steel tubing yp:
TO 40,000 PSI 3-1/2" TO .083
Bending arm speed:
5.5 RPM
Steel bar round yp:
TO 40,000 PSI 1-7/8" DIA
Maximum tube length:
20'9" OVER MANDREL APPROX
Extra heavy pipe ips:
3"
Non ferrous tubing yp:
TO 12,000 PSI 3-1/2" X .188
Non ferrous tubing yp 2:
TO 25,000 PSI 3-1/2" X .120
3) button pedestal control:
YES
Counter clockwise rotation:
YES
Hydraulic mandrel extractor:
YES
Subcategory:
Benders

Description

SERIAL NUMBER .................... 11245-64179
MODEL ............................ #2
EXTRA HEAVY PIPE IPS ............. 3"
NON FERROUS TUBING YP ............ TO 12,000 PSI 3-1/2" X .188
NON FERROUS TUBING YP ............ TO 25,000 PSI 3-1/2" X .120
STEEL TUBING YP .................. TO 40,000 PSI 3-1/2" TO .083
STEEL BAR ROUND YP ............... TO 40,000 PSI 1-7/8" DIA
MAXIMUM TUBE LENGTH .............. 20'9" OVER MANDREL APPROX
EXTENSION TABLE W/HYD PUSH CYCLE . 14'4"
MAXIMUM RADIUS ................... 12"
BENDING ARM ...................... 30"
BENDING ARM SPEED ................ 5.5 RPM
HYDRAULIC MANDREL EXTRACTOR ...... YES
(3) BUTTON PEDESTAL CONTROL ...... YES
8 POSITION DEGREE TURRET OF BEND SELECTOR
COUNTER CLOCKWISE ROTATION ....... YES
MOTOR ............................ 7-1/2 HORSEPOWER
