Top Seller

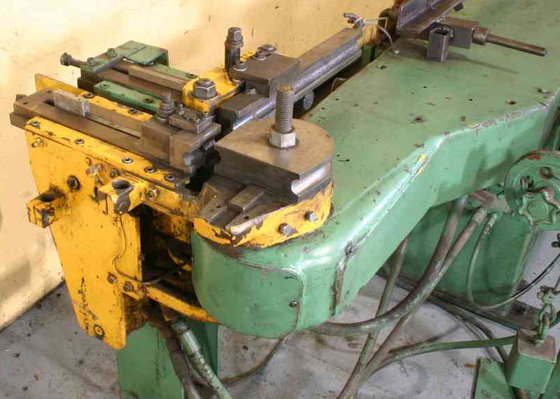

Pines 110 3/4" HYDRAULIC BENDER
Location:
Holland, OH
Manufacturer:
Pines
Model:
110
Capacity:
1-11/16"

Specifications

Condition:
used
Stock number:
50698
Motor:
5 HORSEPOWER
Serial:
11015-690899010
Maximum radius:
10"
Bending rotation:
COUNTER CLOCKWISE
Bijur lubrication:
YES
Maximum bend angle:
180 DEGREE + OVERBEND
Operating pressure:
2000 PSI
Average bending arm speed:
27 RPM
Capacity square bar (mild steel):
1-11/16"
Maximum tube length over mandrel:
9 11"
Capacity steel pipe (schedule 80):
3/4"
8-position degree of bend selector:
YES
Subcategory:
Tube benders

Description

SERIAL ........................................ 11015-690899010
MODEL ......................................... 110
CAPACITY STEEL PIPE (SCHEDULE 80) ............. 3/4"
CAPACITY NON-FERROUS TUBE (Y.P. TO 25K PSI) ... 1-1/2" OD. X .065
CAPACITY STEEL TUBE (Y.P. TO 40K PSI) ......... 1-3/8" OD X .065
CAPACITY STAINLESS TUBE (Y.P. TO 60K PSI) ..... 1-1/8" OD X .065
CAPACITY SQUARE BAR (MILD STEEL) .............. 1-11/16"
MAXIMUM RADIUS ................................ 10"
MAXIMUM BEND ANGLE ............................ 180 DEGREE + OVERBEND
MAXIMUM TUBE LENGTH OVER MANDREL .............. 9 11"
BENDING ROTATION .............................. COUNTER CLOCKWISE
AVERAGE BENDING ARM SPEED ..................... 27 RPM
OPERATING PRESSURE ............................ 2000 PSI
8-POSITION DEGREE OF BEND SELECTOR ............ YES
HYDRAULIC MANDREL EXTRACTOR & CLAMPING ........ YES
BIJUR LUBRICATION ............................. YES
MOTOR ......................................... 5 HORSEPOWER
