Top Seller

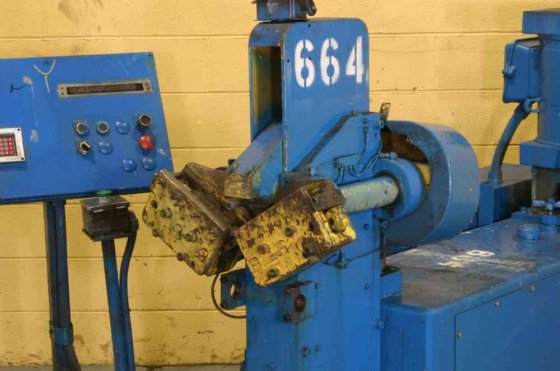

Pines 3T MODEL # VERTICAL
Location:
Holland, OH
Manufacturer:
Pines
Model:
Pines 3T
Capacity:
3 TONS

Specifications

Condition:
used
Stock number:
51192
Motor:
20 HORSEPOWER
Serial:
44361-83143
Capacity:
3 TONS
Age - new:
1983
Oil cooler:
YES
Palm button:
YES
Cushion cylinder:
YES
Production speed:
1500 BENDS PER HOUR
Centerline radius:
4-1/2" MAXIMUM
Knee mounted wing die:
YES
Round bar - mild steel:
3/4"
Square bar - mild steel:
9/16"
Square tubing, mild steel:
1" X .065"
Digital dial-a-bend selector:
YES
Bend angle with normal tooling:
140 DEGREES MAXIMUM
Mild steel tubing (40,000 psi):
1-1/4" X .065" WALL
Bend angle with special tooling:
165 DEGREES MAXIMUM
Non-ferrous tubing (25,000 psi):
1" X .083" WALL
Subcategory:
Tube benders

Description

SERIAL ............................... 44361-83143
MODEL ................................ 3T
AGE - NEW ............................ 1983
CAPACITY ............................. 3 TONS
NON-FERROUS TUBING (25,000 PSI) ...... 1" X .083" WALL
MILD STEEL TUBING (40,000 PSI) ....... 1-1/4" X .065" WALL
STAINLESS STEEL TUBING (60,000 PSI) .. 1-1/4" X .049" WALL
SQUARE TUBING, MILD STEEL ............ 1" X .065"
ROUND BAR - MILD STEEL ............... 3/4"
SQUARE BAR - MILD STEEL .............. 9/16"
CENTERLINE RADIUS .................... 4-1/2" MAXIMUM
BEND ANGLE WITH NORMAL TOOLING ....... 140 DEGREES MAXIMUM
BEND ANGLE WITH SPECIAL TOOLING ...... 165 DEGREES MAXIMUM
PRODUCTION SPEED ..................... 1500 BENDS PER HOUR
DIGITAL DIAL-A-BEND SELECTOR ......... YES
KNEE MOUNTED WING DIE ................ YES
CUSHION CYLINDER ..................... YES
OIL COOLER ........................... YES
PALM BUTTON .......................... YES
MOTOR ................................ 20 HORSEPOWER
