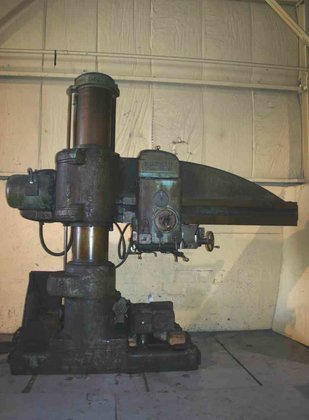

American 07 X 17 7'
Location:
Holland, OH
Manufacturer:
American
Model:
07 X 17

Specifications

Condition:
used
Stock number:
15381
Motor:
20 HORSEPOWER SPINDLE MOTOR
Serial:
69777-46
Coolant:
YES
Spindle feeds:
(16) .003 TO .125 IPR
Spindle taper:
#5 MT
Power clamping:
YES
Spindle speeds:
(32) 20 TO 1600 RPM
Spindle stroke:
18"
Power elevation:
YES
Spindle to base:
10-1/2" MIN. TO 72" MAX.
Spindle diameter:
3-1/4"
Power head travel:
YES
Spindle to column:
14" MIN. TO 84" MAX.
Driven track type base:
YES
Arm length x column diameter:
7 X 17"
Subcategory:
Radial drills

Description

SERIAL ........................... 69777-46
ARM LENGTH X COLUMN DIAMETER ..... 7 X 17"
SPINDLE SPEEDS ................... (32) 20 TO 1600 RPM
SPINDLE FEEDS .................... (16) .003 TO .125 IPR
SPINDLE STROKE ................... 18"
SPINDLE DIAMETER ................. 3-1/4"
SPINDLE TAPER .................... #5 MT
SPINDLE TO COLUMN ................ 14" MIN. TO 84" MAX.
SPINDLE TO BASE .................. 10-1/2" MIN. TO 72" MAX.
DRIVEN TRACK TYPE BASE ........... YES
POWER HEAD TRAVEL ................ YES
POWER CLAMPING ................... YES
POWER ELEVATION .................. YES
COOLANT .......................... YES
MOTOR ............................ 20 HORSEPOWER SPINDLE MOTOR
