Top Seller

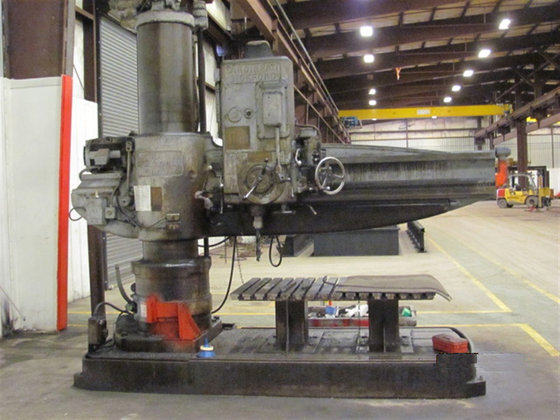

Cincinnati 07 X 19 7'
Location:
Holland, OH
Manufacturer:
Cincinnati
Model:
07 X 19

Specifications

Condition:
used
Stock number:
58296
Serial:
6E 344
Coolant:
YES
Model 2:
6E
Arm length:
7'
Main motor:
15 HORSEPOWER
Spindle feeds:
006 TO .125 IPR
Spindle speeds:
23 TO 1415 RPM
Spindle stroke:
18"
Column diameter:
19"
Power elevation:
YES
Power arm clamping:
YES
Power head clamping:
YES
Power head traverse:
YES
Horizontal head travel on arm:
70"
Subcategory:
Radial drills

Description

SERIAL .............................. 6E 344
MODEL ............................... 6E
ARM LENGTH .......................... 7'
COLUMN DIAMETER ..................... 19"
SPINDLE SPEEDS ...................... 23 TO 1415 RPM
SPINDLE FEEDS ....................... .006 TO .125 IPR
SPINDLE STROKE ...................... 18"
HORIZONTAL HEAD TRAVEL ON ARM ....... 70"
VERTICAL TRAVEL OF ARM ON COLUMN .... 40"
MAXIMUM DISTANCE BASE TO SPINDLE .... 90"
POWER ELEVATION ..................... YES
POWER HEAD TRAVERSE ................. YES
POWER HEAD CLAMPING ................. YES
POWER ARM CLAMPING .................. YES
COOLANT ............................. YES
MAIN MOTOR .......................... 15 HORSEPOWER
