Top Seller

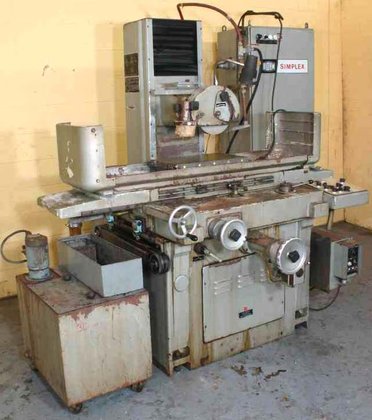

Blohm 012 X 022 12"
Location:
Holland, OH
Model:
012 X 022

Specifications

Condition:
used
Stock number:
50844
Serial:
10580
Model 2:
SIMPLEX 5
Capacity:
22" X 14"
Cross travel:
12
Area of table:
12" X 36"
Spindle motor:
5-1/2 HORSEPOWER
Coolant system:
YES
Pass line height:
40"
Spark out cycles:
YES
Diameter of wheel:
12" X 3-1/8" X 3"
Electromagnetic chuck:
20" X 12" X 4" FINE LINE
Grinding wheel speeds:
1700/3400 RPM
Hydraulic table speed:
6-1/2 TO 98 FPM
Power spindle elevation:
YES
Flinimatic auto down feed:
VARIABLE
Longitudinal table travel:
23"
Variable hold magnetic chuck:
YES
Automatic cross feeds, variable:
08" TO 2-9/16"
Subcategory:
Grinder

Description

SERIAL .............................. 10580
MODEL ............................... SIMPLEX 5
CAPACITY ............................ 22" X 14"
AREA OF TABLE ....................... 12" X 36"
LONGITUDINAL TABLE TRAVEL ........... 23"
CROSS TRAVEL ........................ 12
AUTOMATIC CROSS FEEDS, VARIABLE ..... .08" TO 2-9/16"
HYDRAULIC TABLE SPEED ............... 6-1/2 TO 98 FPM
DISTANCE SPINDLE CENTER TO TABLE .... 23"
GRINDING WHEEL SPEEDS................ 1700/3400 RPM
DIAMETER OF WHEEL ................... 12" X 3-1/8" X 3"
ELECTROMAGNETIC CHUCK................ 20" X 12" X 4" FINE LINE
FLINIMATIC AUTO DOWN FEED ........... VARIABLE
VARIABLE HOLD MAGNETIC CHUCK ........ YES
POWER SPINDLE ELEVATION ............. YES
SPARK OUT CYCLES .................... YES
PASS LINE HEIGHT .................... 40"
COOLANT SYSTEM ...................... YES
SPINDLE MOTOR........................ 5-1/2 HORSEPOWER
