AKER MARITIME Traveling Equipment -
Location:
Vermillion, SD
Manufacturer:
AKER MARITIME

Specifications

Condition:
used
Stock number:
UL-05737
Division:
Equipment
Quantity:
1
Condition info:
Good
Subcategory 2:
Block & hook combos

Description

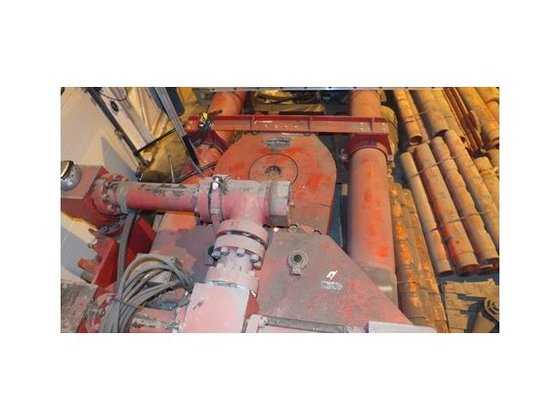

Compensator, Drilling, M.H. - Capacity 250 tons, QTY: 1 each, Listing ID: UL-05737, Location: Norway Manufacturer: Aker Maritime Hydraulics Info: In-line heave compensator, Aker M.H., Rated: 226 Te hook load, 2 each cylinders, Stroke: 5.4 m / 17.7 ft, In Very Good Condition. Compensator capacity (open and locked): 226 Tonnes hook load (excl. weight of the travelling assembly) The Inline PHC consisting of: 2 x Compensator cylinder • Stroke : 5400 mm • Bore diameter : Ø 330 mm • Rod diameter : Ø 100 mm • Working pressure (Rode side) : 160 bar • Working pressure (Bottom side) : Vaccum • Design pressure : 200 bar • Static test pressure : 300 bar • Hydraulic medium : Water/ glycol (Erifon 818) • Position measuring system : CIMS MK II RS-422A
