Top Seller

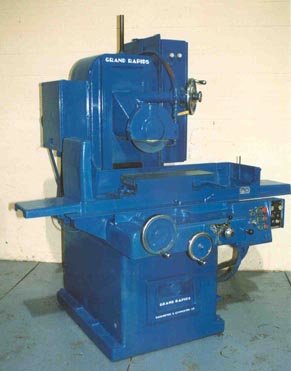

Grand Rapids 08 X 024
Location:
Holland, OH
Manufacturer:
Grand Rapids
Model:
08 X 024

Specifications

Condition:
used
Stock number:
9863
Serial:
350433
Capacity:
8" X 24"
Magnetic chuck:
8" X 24" X 4"
Spindle speeds:
2000 & 2400 RPM
Cross table travel:
9-1/4"
Maximum under wheel:
15"
Hydraulic table travel:
1/4 TO 150 FPM
Width of grinding wheel:
1"
Longitudinal table travel:
29"
Diameter of grinding wheel:
12"
Vertical movement of wheel head:
16"
Subcategory:
Grinder

Description

SERIAL ...................................... 350433
MODEL #350
CAPACITY .................................... 8" X 24"
MAXIMUM UNDER WHEEL ......................... 15"
HYDRAULIC TABLE TRAVEL ...................... 1/4 TO 150 FPM
AUTOMATIC CROSS TRAVEL (AT TABLE REVERSE) ... 0" TO 1/2"
LONGITUDINAL TABLE TRAVEL ................... 29"
CROSS TABLE TRAVEL .......................... 9-1/4"
DIAMETER OF GRINDING WHEEL .................. 12"
WIDTH OF GRINDING WHEEL ..................... 1"
VERTICAL MOVEMENT OF WHEEL HEAD ............. 16"
SPINDLE SPEEDS .............................. 2000 & 2400 RPM
MAGNETIC CHUCK .............................. 8" X 24" X 4"
ELECTROMATIC VARIABLE HOLD MAGNETIC CHUCK CONTROLER
INCREMENTAL OR CONTINIOUS CROSS FEED
POWER SPINDLE ELEVATION
3 HORSEPOWER SPINDLE MOTOR
1-1/2 HORSEPOWER HYDRAULIC SYSTEM MOTOR
