Top Seller

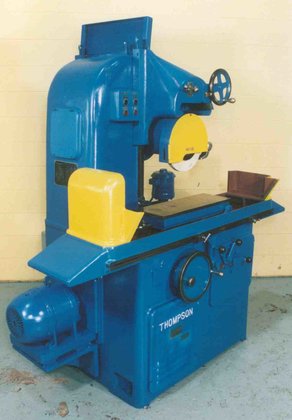

Thompson 008 X 024 8"
Location:
Holland, OH
Model:
008 X 024

Specifications

Condition:
used
Stock number:
7634
Capacity:
8" X 24"
Spindle speed:
1750 RPM
Magnetic chuck:
8" X 24" X 3-1/2"
Maximum under wheel:
12"
Automatic cross travel:
1/32" TO 3/4"
Grinding wheel surface:
5400 FPM
Hydraulic table travel:
10 TO 100 FPM
Width of grinding wheel:
1-12"
Diameter of grinding wheel:
12"
Subcategory:
Grinder

Description

SERIAL #B22173
CAPACITY ................................... 8" X 24"
MAXIMUM UNDER WHEEL ........................ 12"
HYDRAULIC TABLE TRAVEL ..................... 10 TO 100 FPM
AUTOMATIC CROSS TRAVEL ..................... 1/32" TO 3/4"
GRINDING WHEEL SURFACE ..................... 5400 FPM
SPINDLE SPEED .............................. 1750 RPM
DIAMETER OF GRINDING WHEEL ................. 12"
WIDTH OF GRINDING WHEEL .................... 1-12"
MAGNETIC CHUCK ............................. 8" X 24" X 3-1/2"
OVERHEAD WHEEL DRESSER
COOLANT
3 HORSEPOWER SPINDLE MOTOR
1-1/2 HORSEPOWER HYDRAULIC MOTOR
