Top Seller

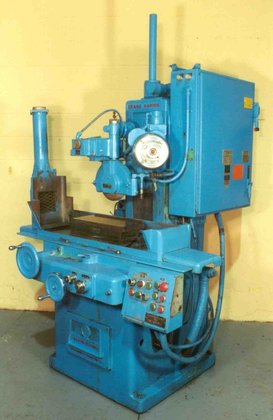

Gallmeyer & Livingston 08 X
Location:
Holland, OH
Model:
08 X 018

Specifications

Condition:
used
Stock number:
14777
Serial:
260191
Model 2:
260
Year new:
1972
Bijur lube:
YES
Spindle motor:
1 HORSEPOWER
Spindle speeds:
2300 & 3000 RPM
Hydraulic motor:
1-1/2 HORSEPOWER
Power elevation:
YES
Grinding capacity:
18" X 8"
Cross table travel:
9-1/4"
Grinding wheel size:
10" X 1/2" X 3"
Maximum work height:
15"
Incremental downfeed:
YES
Table speeds (variable):
3" TO 150 PER MINUTE
Longitudinal table travel:
23-1/2"
Electro-magnetic chuck size:
18-1/4" X 8" X 4-1/8"
Over the wheel hydraulic dresser:
YES
Subcategory:
Grinders

Description

SERIAL ........................................ 260191
MODEL ......................................... 260
YEAR NEW ...................................... 1972
GRINDING CAPACITY ............................. 18" X 8"
MAXIMUM WORK HEIGHT ........................... 15"
ELECTRO-MAGNETIC CHUCK SIZE .............. 18-1/4" X 8" X 4-1/8"
GRINDING WHEEL SIZE ........................... 10" X 1/2" X 3"
SPINDLE SPEEDS ................................ 2300 & 3000 RPM
TABLE SPEEDS (VARIABLE) .................. 3" TO 150 PER MINUTE
LONGITUDINAL TABLE TRAVEL ..................... 23-1/2"
CROSS TABLE TRAVEL ............................ 9-1/4"
INCREMENTAL DOWNFEED .......................... YES
POWER ELEVATION ............................... YES
HYDRAULIC CROSS & LONGITUDINAL TABLE FEEDS .... YES
OVER THE WHEEL HYDRAULIC DRESSER .............. YES
BIJUR LUBE .................................... YES
SPINDLE MOTOR ................................. 1 HORSEPOWER
HYDRAULIC MOTOR ............................... 1-1/2 HORSEPOWER
