Top Seller

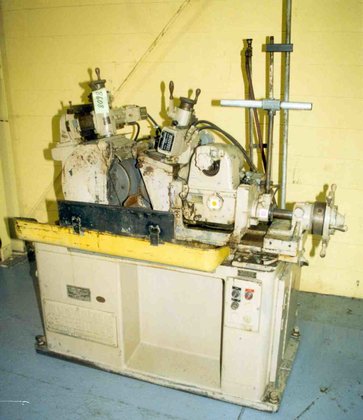

Van Norman 1C MODEL #
Location:
Holland, OH
Manufacturer:
Van Norman
Model:
1C

Specifications

Condition:
used
Stock number:
8608
Serial:
5068-757
Thru feed capacity:
0" TO 1-1/2" DIAMETER
Grinding wheel speed:
1725 RPM
Diameter of grinding wheel:
14"
Diameter of regulating wheel:
8"
Maximum width of grinding wheel:
4"
Maximum width of regulating wheel:
4"
Regulating wheel lateral adjustment:
1-1/2"
Subcategory:
Grinder
Subcategory 2:
Grinder- centerless

Description

SERIAL ...................................... 5068-757
MODEL ....................................... 1C
THRU FEED CAPACITY .......................... 0" TO 1-1/2" DIAMETER
GRINDING WHEEL SPEED ........................ 1725 RPM
REGULATING WHEEL SPEED, LOW RANGE VARIABLE .. 13 TO 80 RPM
REGULATING WHEEL SPEED, HIGH RANGE VARIABLE . 140 TO 830 RPM
REGULATING WHEEL LATERAL ADJUSTMENT ......... 1-1/2"
MAXIMUM WIDTH OF GRINDING WHEEL ............. 4"
DIAMETER OF GRINDING WHEEL .................. 14"
MAXIMUM WIDTH OF REGULATING WHEEL ........... 4"
DIAMETER OF REGULATING WHEEL ................ 8"
HYDRAULIC DRESSER TRAVERSE (BOTH HEADS)
THROUGH FEED ATTACHMENT
COOLANT
10 HORSEPOWER HYDRAULIC UNIT MOTOR
7-1/2 HORSEPOWER GRINDING WHEELHEAD MOTOR
1.2 HORSEPOWER REGULATING WHEELHEAD MOTOR
