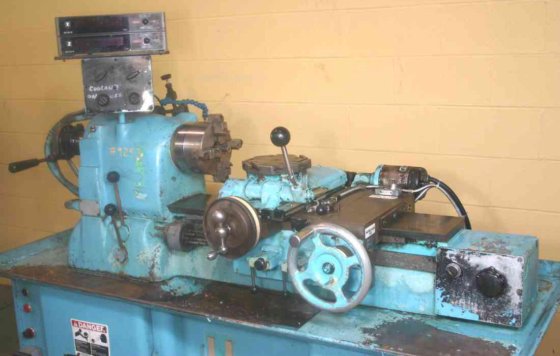

Hardinge 12 X 014 MDL
Location:
Holland, OH
Manufacturer:
Hardinge lathes
Model:
12 X 014 MDL HC

Specifications

Condition:
used
Stock number:
18414
Serial:
12354
Coolant:
YES
Model 2:
HC
Carriage stop:
YES
Swing over bed:
12"
Motor, horsepower:
1-1/2
4-jaw chuck diameter:
6"
Travel of cross slide:
4-1/2"
Swing over cross slide:
6"
Spindle speeds, variable:
125 TO 3000 RPM
Diameter of spindle holes:
1-5/32"
Two axis sony digital readouts:
YES

Description

SERIAL ................................ 12354
MODEL ................................. HC
SWING OVER BED ........................ 12"
SWING OVER CROSS SLIDE ................ 6"
DISTANCE FACE OF SPINDLE TO TURRET .... 14"
SPINDLE SPEEDS, VARIABLE .............. 125 TO 3000 RPM
TRAVEL OF CROSS SLIDE ................. 4-1/2"
CROSS SLIDE POWER FEED RANGE VARIABLE . 11/32 TO 6-1/4 IPM
CARRIAGE POWER FEED RANGE, VARIABLE ... 1/4 TO 10 IPM
DIAMETER OF SPINDLE HOLES ............. 1-5/32"
NUMBER OF TOOL POSITIONS ON TURRET .... 8
CARRIAGE STOP ......................... YES
4-JAW CHUCK DIAMETER .................. 6"
COOLANT ............................... YES
TWO AXIS SONY DIGITAL READOUTS ........ YES
MOTOR, HORSEPOWER ..................... 1-1/2
