Top Seller

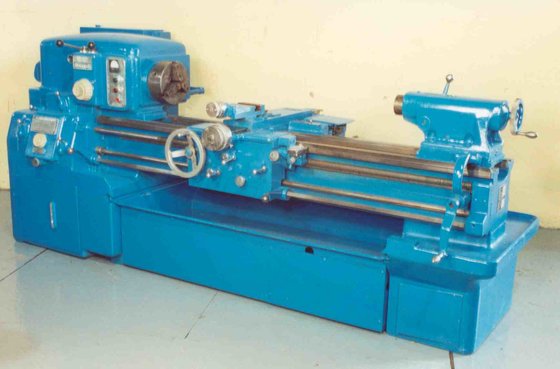

Monarch 16 X 054 MDL
Location:
Holland, OH
Manufacturer:
Monarch lathes
Model:
16 X 054 MDL 1610 SERIES 612
Distance between Centers:
54"

Specifications

Condition:
used
Stock number:
14400
Chuck:
10" 3-JAW
Feeds:
(66) .0010 TO .0615 IPR
Serial:
49176
Model 2:
1610 SERIES 612
Threads:
(66) 2 TO 120 TPI
Chip pan:
YES
Hardened ways:
YES
Spindle motor:
15 HORSEPOWER
Spindle speeds:
(36) 12 TO 1500 RPM
Taper attachment:
YES
Hole thru spindle:
2-1/16"
Rated swing over bed:
16"
Actual swing over bed:
17-1/2"
Swing over cross slide:
10"
Distance between centers:
54"
Subcategory:
Lathe- engine

Description

SERIAL ............................ 49176
MODEL ............................. 1610 SERIES 612
RATED SWING OVER BED .............. 16"
ACTUAL SWING OVER BED ............. 17-1/2"
SWING OVER CROSS SLIDE ............ 10"
DISTANCE BETWEEN CENTERS .......... 54"
SPINDLE SPEEDS .................... (36) 12 TO 1500 RPM
FEEDS ............................. (66) .0010 TO .0615 IPR
THREADS ........................... (66) 2 TO 120 TPI
HOLE THRU SPINDLE ................. 2-1/16"
TAPER ATTACHMENT .................. YES
CHIP PAN .......................... YES
CHUCK ............................. 10" 3-JAW
HARDENED WAYS ..................... YES
SPINDLE MOTOR ..................... 15 HORSEPOWER
