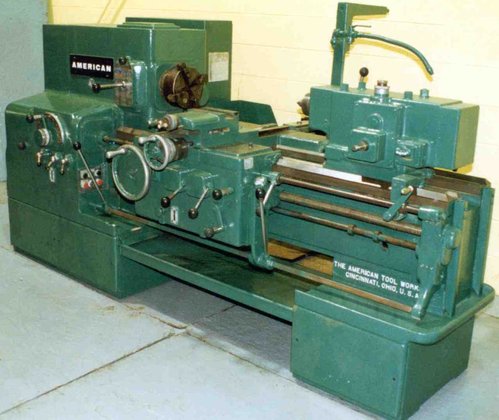

American 20 X 030 MDL
Location:
Holland, OH
Manufacturer:
American lathes
Model:
20 X 030 MDL B
Distance between Centers:
30"

Specifications

Condition:
used
Stock number:
9778
Chuck:
10" 4 JAW
Feeds:
(66) .0015 TO .0913 IPR
Motor:
10 HORSEPOWER
Serial:
77905
Model 2:
B
Threads:
(66) 2 TO 120 TPI
Thread dial:
YES
Spindle speeds:
(27) 30 TO 2000 RPM
Taper attachment:
YES
Coolant with chip pan:
YES
Swing over cross slide:
10-1/2"
Maximum swing over ways:
20"
Diameter of spindle hole:
2"
Distance between centers:
30"
Subcategory:
Lathe- engine

Description

SERIAL ................................. 77905
MODEL .................................. B
MAXIMUM SWING OVER WAYS ................ 20"
SWING OVER CROSS SLIDE ................. 10-1/2"
DISTANCE BETWEEN CENTERS ............... 30"
SPINDLE SPEEDS ......................... (27) 30 TO 2000 RPM
FEEDS .................................. (66) .0015 TO .0913 IPR
THREADS ................................ (66) 2 TO 120 TPI
DIAMETER OF SPINDLE HOLE ............... 2"
TAPER ATTACHMENT ....................... YES
CHUCK .................................. 10" 4 JAW
THREAD DIAL ............................ YES
COOLANT WITH CHIP PAN .................. YES
MOTOR .................................. 10 HORSEPOWER
