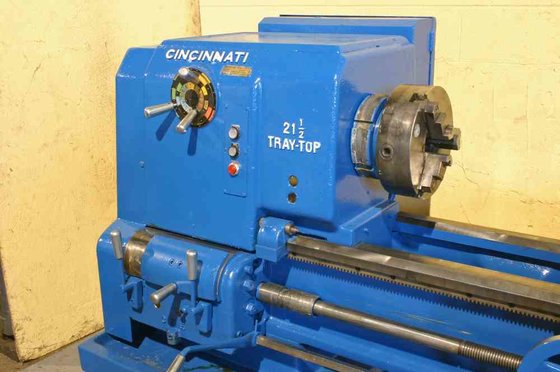

Cincinnati 21 X 072 21-1/2"
Location:
Holland, OH
Manufacturer:
Cincinnati lathes
Model:
21 X 072
Distance between Centers:
72"

Specifications

Condition:
used
Stock number:
15618
Chuck:
12" 3-JAW
Feeds:
(54) .0019 TO .1215 IPR
Motor:
7-1/2 HORSEPOWER
Serial:
1W5D6C-23
Model 2:
21-1/2" TRAY-TOP
Threads:
(54) 1-1/2 TO 92 TPI
Thread dial:
YES
Spindle speeds:
(12) 16 TO 640 RPM
Swing over bed:
21-1/2"
Taper attachment:
YES
Hole thru spindle:
1-15/16"
Coolant with chip pan:
YES
Swing over cross slide:
14"
Distance between centers:
72"
Micrometer carriage stop:
YES
Hardened replaceable ways:
YES
Subcategory:
Lathe- engine

Description

SERIAL ........................ 1W5D6C-23
MODEL ......................... 21-1/2" TRAY-TOP
SWING OVER BED ................ 21-1/2"
SWING OVER CROSS SLIDE ........ 14"
DISTANCE BETWEEN CENTERS ...... 72"
HOLE THRU SPINDLE ............. 1-15/16"
SPINDLE SPEEDS ................ (12) 16 TO 640 RPM
FEEDS ......................... (54) .0019 TO .1215 IPR
THREADS ....................... (54) 1-1/2 TO 92 TPI
CHUCK ......................... 12" 3-JAW
MICROMETER CARRIAGE STOP ...... YES
THREAD DIAL ................... YES
TAPER ATTACHMENT .............. YES
COOLANT WITH CHIP PAN ......... YES
HARDENED REPLACEABLE WAYS ..... YES
MOTOR ......................... 7-1/2 HORSEPOWER
