Top Seller

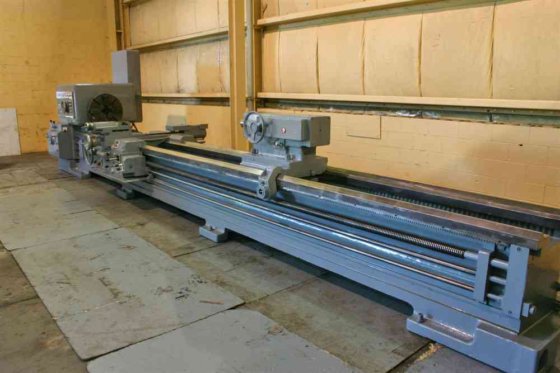

Lodge & Shipley 34 X
Location:
Holland, OH
Model:
34 X 240 MDL 3220 MAGNATURN
Distance between Centers:
240" (20')

Specifications

Condition:
used
Stock number:
53433
Chuck:
24" 4 JAW
Feeds:
(60) .0038 TO .240 IPR
Motor:
40 HORSEPOWER
Serial:
43828
Model 2:
3220 MAGNATURN
Threads:
(60) 1/2 TO 32 TPI
Hard ways:
YES
Thread dial:
YES
Spindle brake:
YES
Spindle speeds:
(32) 7 TO 875 RPM
Swing over ways:
34"
Forward & reversing:
YES
4 way rapid traverse:
YES
Swing over cross slide:
20"
Diameter of spindle hole:
3-9/16"
Distance between centers:
240" (20')
Subcategory:
Lathe- engine

Description

SERIAL ............................. 43828
MODEL .............................. 3220 MAGNATURN
SWING OVER WAYS .................... 34"
SWING OVER CROSS SLIDE ............. 20"
DISTANCE BETWEEN CENTERS ........... 240" (20')
SPINDLE SPEEDS ..................... (32) 7 TO 875 RPM
FEEDS .............................. (60) .0038 TO .240 IPR
THREADS ............................ (60) 1/2 TO 32 TPI
DIAMETER OF SPINDLE HOLE ........... 3-9/16"
4 WAY RAPID TRAVERSE ............... YES
HARD WAYS .......................... YES
THREAD DIAL ........................ YES
FORWARD & REVERSING ................ YES
SPINDLE BRAKE ...................... YES
CHUCK .............................. 24" 4 JAW
MOTOR .............................. 40 HORSEPOWER
