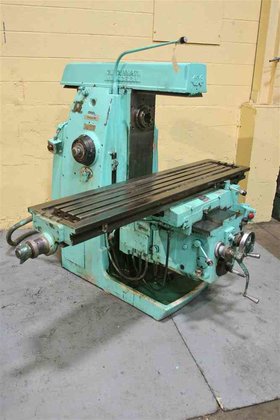

Cincinnati 3 CINOVA #3 (CINOVA
Location:
Holland, OH
Manufacturer:
Cincinnati
Model:
3 CINOVA

Specifications

Condition:
used
Stock number:
54470
Motor:
5 HORSEPOWER
Coolant:
YES
Model 2:
CINOVA
Cross travel:
12"
Area of table:
62" X 14"
Dual controls:
YES
Rapid traverse:
85 IPM
Spindle speeds:
(16) 20 TO 1600 RPM
Vertical feeds:
(16) 1/8 TO 15 IPM
Taper in spindle:
#50 NS
Longitudinal travel:
34"
Vertical knee travel:
16"
Longitudinal & cross feeds:
(16) 1/4 TO 30 IPM
Subcategory:
Mill

Description

MODEL ................................. CINOVA
AREA OF TABLE ......................... 62" X 14"
SPINDLE SPEEDS ........................ (16) 20 TO 1600 RPM
LONGITUDINAL & CROSS FEEDS ............ (16) 1/4 TO 30 IPM
VERTICAL FEEDS ........................ (16) 1/8 TO 15 IPM
LONGITUDINAL TRAVEL ................... 34"
CROSS TRAVEL .......................... 12"
VERTICAL KNEE TRAVEL .................. 16"
DISTANCE CENTER OF SPINDLE TO TABLE ... O" MIN, 16" MAX
TAPER IN SPINDLE ...................... #50 NS
RAPID TRAVERSE ........................ 85 IPM
DUAL CONTROLS ......................... YES
COOLANT ............................... YES
MOTOR ................................. 5 HORSEPOWER
