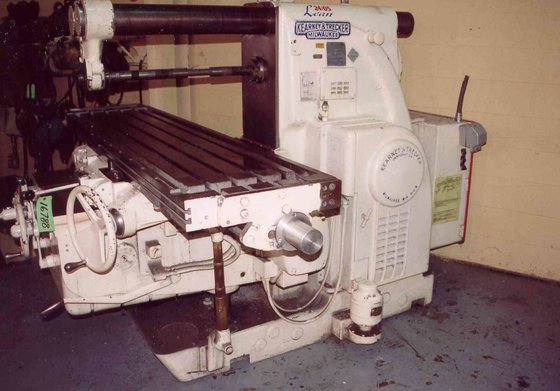

Kearney & Trecker 430TF-20 MODEL
Location:
Holland, OH
Manufacturer:
Kearney & Trecker
Model:
430TF-20

Specifications

Condition:
used
Stock number:
16788
Serial:
32-8207
Coolant:
YES
Cross travel:
14"
Area of table:
80" X 20"
Spindle speeds:
(18) 15 TO 1500 RPM
Vertical feeds:
(32) 1/8 TO 30 IPM
Overarm support:
YES
Vertical travel:
17"
Taper in spindle:
#50NS
Longitudinal travel:
42"
Feed motor, horsepower:
5
Spindle motor, horsepower:
30
Center of spindle to table:
0" MIN, 17" MAX
Subcategory:
Mill

Description

SERIAL .......................... 32-8207
MODEL ........................... 430-TF20
AREA OF TABLE ................... 80" X 20"
SPINDLE SPEEDS .................. (18) 15 TO 1500 RPM
LONGITUDINAL AND CROSS FEEDS .... (32) 3/8 TO 90 IPM
VERTICAL FEEDS .................. (32) 1/8 TO 30 IPM
LONGITUDINAL TRAVEL ............. 42"
CROSS TRAVEL .................... 14"
VERTICAL TRAVEL ................. 17"
CENTER OF SPINDLE TO TABLE ...... 0" MIN, 17" MAX
TAPER IN SPINDLE ................ #50NS
OVERARM SUPPORT ................. YES
COOLANT ......................... YES
SPINDLE MOTOR, HORSEPOWER ....... 30
FEED MOTOR, HORSEPOWER .......... 5
