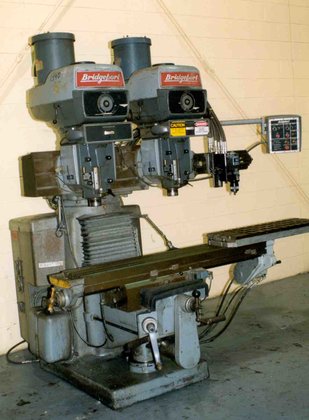

Bridgeport 4 HP VERTICAL TRACER
Location:
Holland, OH
Manufacturer:
Bridgeport

Specifications

Condition:
used
Stock number:
12672
New:
1980
Serial:
#1922171 & 1922177
Cross travel:
15"
Quill travel:
5"
Area of table:
58" X 11"
Spindle motor:
4 HORSEPOWER
Spindle speeds:
50 TO 3500 RPM (VARIABLE)
Depth of throat:
16"
Longitudinal travel:
30"
Taper in each spindle:
#40 MT
Distance between heads:
13" MIN. TO 34" MAX.
Spindle to top of table:
10" MIN. TO 24" MAX.
Vertical travel of knee:
16"
Subcategory:
Mill
Subcategory 2:
Mill- tracer

Description

SERIAL ............................... #1922171 & 1922177
NEW .................................. 1980
AREA OF TABLE ........................ 58" X 11"
SPINDLE SPEEDS ....................... 50 TO 3500 RPM (VARIABLE)
LONGITUDINAL TRAVEL .................. 30"
CROSS TRAVEL ......................... 15"
VERTICAL TRAVEL OF KNEE .............. 16"
QUILL TRAVEL ......................... 5"
DEPTH OF THROAT ...................... 16"
SPINDLE TO TOP OF TABLE .............. 10" MIN. TO 24" MAX.
TAPER IN EACH SPINDLE ................ #40 MT
DISTANCE BETWEEN HEADS ............... 13" MIN. TO 34" MAX.
TRU-TRACE MODEL #1110 - 360 DEGREE TRACER
SPINDLE MOTOR ........................ 4 HORSEPOWER
