Top Seller

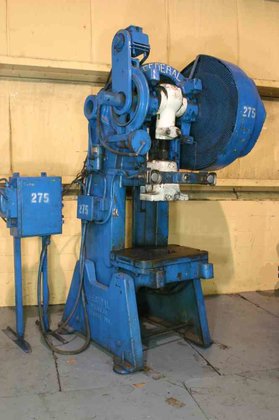

Federal 0060 60 TON FLYWHEEL
Location:
Holland, OH
Manufacturer:
Federal
Model:
0060
Capacity:
60 TON
Stroke:
6"

Specifications

Condition:
used
Stock number:
51178
Serial:
5-2322
Bolster:
29-1/2" X 18-1/2" X 2-1/2"
Model 2:
5
Capacity:
60 TON
Area of bed:
29-1/2" X 18-1/2"
Area of ram:
16" X 12"
Flywheel type:
YES
Depth of throat:
10"
Stroke of slide:
6"
Slide adjustment:
2-1/2"
Motor, horsepower:
5
Shut height, sdau:
17-1/4"
Strokes per minute:
90
Air clutch and air brake:
YES
Width of hole through back:
13-3/4"
Subcategory:
Press-obi flywheel

Description

SERIAL .............................. 5-2322
MODEL ............................... 5
CAPACITY ............................ 60 TON
STROKE OF SLIDE ..................... 6"
SLIDE ADJUSTMENT .................... 2-1/2"
SHUT HEIGHT, SDAU ................... 17-1/4"
AREA OF BED ......................... 29-1/2" X 18-1/2"
AREA OF RAM ......................... 16" X 12"
STROKES PER MINUTE .................. 90
WIDTH OF HOLE THROUGH BACK .......... 13-3/4"
BOLSTER ............................. 29-1/2" X 18-1/2" X 2-1/2"
DEPTH OF THROAT ..................... 10"
AIR CLUTCH AND AIR BRAKE ............ YES
FLYWHEEL TYPE ....................... YES
MOTOR, HORSEPOWER ................... 5
