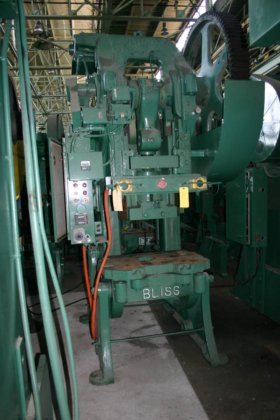

Bliss 23 in Holland, OH, USA

Location:
Holland, OH, USA
Price:
No price
Manufacturer:
Bliss presses
Model:
23
Stroke:
8"

Specifications

Condition:
used
Serial number:
H43560
Stock number:
19334
Motor:
7.5 HORSEPOWER
Stroke:
8"
Throat:
12.5"
Bed area:
24" FB X 32" LR
Air brake:
YES
Air clutch:
YES
Slide area:
14" FB X 17" LR
Hole in bed:
14" FB X 18" LR X 18" DIAMETER
Bed bolster size:
24" FB X 32" LR X 3" THICK
Slide adjustment:
MANUAL
Bijur lubrication:
YES
Shut height (sdau):
15"
Single back geared:
YES
Strokes per minute:
40
Digital brake monitor:
YES
Distance between uprights:
18"
Distance from bed to gibs:
27"
Dual palm button controls:
YES
Subcategory:
All types

Description

SERIAL ....................... H43560
MODEL ........................ 23
STROKE ....................... 8"
SHUT HEIGHT (SDAU) ........... 15"
SLIDE ADJUSTMENT ............. 3"
STROKES PER MINUTE ........... 40
SLIDE AREA ................... 14" FB X 17" LR
BED AREA ..................... 24" FB X 32" LR
HOLE IN BED .................. 14" FB X 18" LR X 18" DIAMETER
BED BOLSTER SIZE ............. 24" FB X 32" LR X 3" THICK
DISTANCE BETWEEN UPRIGHTS .... 18"
DISTANCE FROM BED TO GIBS .... 27"
THROAT ....................... 12.5"
MOTOR ........................ 7.5 HORSEPOWER
SINGLE BACK GEARED ........... YES
AIR CLUTCH ................... YES
AIR BRAKE .................... YES
SLIDE ADJUSTMENT ............. MANUAL
DUAL PALM BUTTON CONTROLS .... YES
OPERATOR'S CONTROLS W/INCH, SINGLE & CONTINUOUS
BIJUR LUBRICATION ............ YES
DIGITAL BRAKE MONITOR ........ YES
