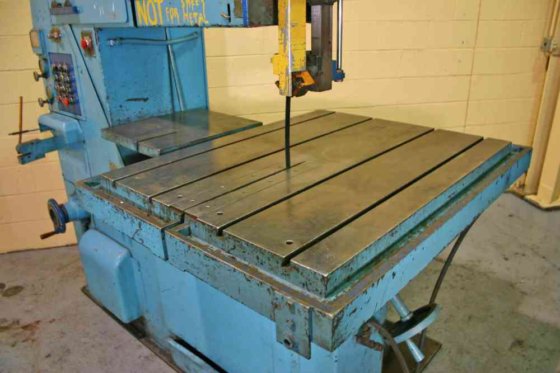

Top Seller
Tannewitz 3600 36" MODEL #
Location:
Holland, OH
Manufacturer:
Tannewitz
Model:
3600
Motor:
7-1/2 HORSEPOWER

Specifications

Condition:
used
Stock number:
52148
Motor:
7-1/2 HORSEPOWER
Serial:
14335
Coolant:
YES
Model 2:
3600 MH
Table tilts:
45 DEGREES RIGHT, 10 DEGREES LEFT
Blade speeds:
35 TO 6000 FPM
Transmission:
3 SPEEDS
Area of table:
32" X 41"
Width of blade:
1/8" TO 1"
Depth of throat:
36"
Length of blade:
17 5"
Area of sub table:
16-1/2" X 19-1/2"
Table feed pressure:
0# TO 600#
Hydraulic table feed:
16" STROKE
Maximum under guides:
13"
Length of blade wheels:
14 10"
Hydraulic blade tension:
YES
Hydraulic guide post adjustment:
YES
Subcategory:
Saw- vertical band

Description

SERIAL .............................. 14335
MODEL ............................... 3600 MH
DEPTH OF THROAT ..................... 36"
MAXIMUM UNDER GUIDES ................ 13"
AREA OF TABLE ....................... 32" X 41"
AREA OF SUB TABLE ................... 16-1/2" X 19-1/2"
BLADE SPEEDS ........................ 35 TO 6000 FPM
TABLE TILTS ......................... 45 DEGREES RIGHT, 10 DEGREES LEFT
HYDRAULIC TABLE FEED ................ 16" STROKE
LENGTH OF BLADE ..................... 17 5"
LENGTH OF BLADE WHEELS .............. 14 10"
WIDTH OF BLADE ...................... 1/8" TO 1"
HYDRAULIC BLADE TENSION ............. YES
HYDRAULIC GUIDE POST ADJUSTMENT ..... YES
TABLE FEED PRESSURE ................. 0# TO 600#
TRANSMISSION ........................ 3 SPEEDS
COOLANT ............................. YES
MOTOR ............................... 7-1/2 HORSEPOWER
