ELHAUS 10" 1022 DEGREE BILLET
Location:
Holland, OH
Manufacturer:
ELHAUS
Capacity:
47/14 GAL/MIN

Specifications

Condition:
used
Stock number:
53146
Age:
1996
Size:
L250 - 60-103/3 FK - WS BD
Motors:
50 HORSEPOWER
Size 2:
250BD
Capacity:
47/14 GAL/MIN
Log length:
20' MAXIMUM - 8.2' MINIMUM
P o number:
05-36427
Throughput:
19" DIA X 34"; 7.716 LB/H @68 - 932 DEGREE F.
Billet length:
34" MAXIMUM - 14" MINIMUM
Order numbers:
1061, 2061, 9021
Overall width:
105"
Overall height:
105"
Overall length:
155"
Shearing force:
229 TON US 1 @3000 PSI
Shearing speed:
1,1"/2,2" (ADVANCE/RETURN)
Billet diameter:
8" - 9" - 10"
Shearing stroke:
14"
Normal operating pressure:
3000 PSI
Lower surface @shear entry:
33"
Subcategory:
Billet heaters

Description

P O NUMBER ........... 05-36427
ORDER NUMBERS ........ 1061, 2061, 9021
AGE .................. 1996
COMPLETE WITH:
STORAGE TABLE
FEEDING CONVEYOR
RAPID BILLET HEATER
HOT SHEAR
CROSS CONVEYOR
ELHAUS GAS FIRED BILLET HEATER WITH RECUPERATION SECTION FOR ALUMINUM LOGS
AND BILLETS
SIZE ................. L250 - 60-103/3 FK - WS BD
BILLET TEMPERATURE ... 1022 DEGREE F. MAXIMUM
BILLET DIAMETER ...... 8" - 9" - 10"
LOG LENGTH ........... 20' MAXIMUM - 8.2' MINIMUM
BILLET LENGTH ........ 34" MAXIMUM - 14" MINIMUM
THROUGHPUT ........... 19" DIA X 34"; 7.716 LB/H @68 - 932 DEGREE F.

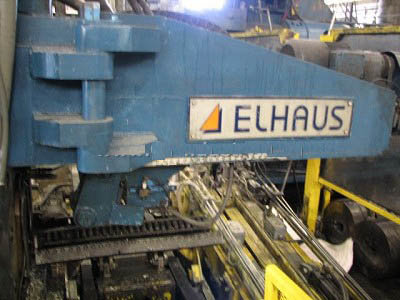

229 TON ELHAUS BILLET HOT SHEAR
SIZE ............................. 250BD
SHEARING FORCE ................... 229 TON US 1 @3000 PSI
SHEARING STROKE .................. 14"
SHEARING SPEED ................... 1,1"/2,2" (ADVANCE/RETURN)
SHEAR DIMENSIONS
OVERALL HEIGHT ................... 105"
OVERALL LENGTH ................... 155"
OVERALL WIDTH .................... 105"
LOWER SURFACE @SHEAR ENTRY ....... 33"
LOWER SURFACE @SHEAR DISCHARGE ... 19"
HYDRAULIC POWER STATION
NORMAL OPERATING PRESSURE ........ 3000 PSI
CAPACITY ......................... 47/14 GAL/MIN
MOTORS ........................... 50 HORSEPOWER
