Top Seller

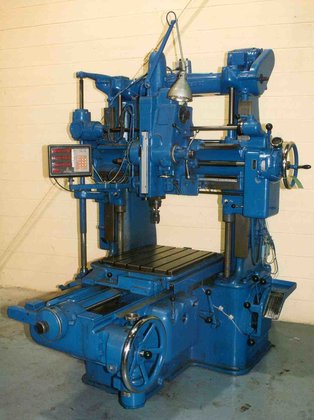

SIP 4G MODEL #MP- PLANER
Location:
Holland, OH
Manufacturer:
SIP
Model:
4G

Specifications

Condition:
used
Stock number:
12443
Serial:
821
Model 2:
MP-4G
Area of table:
27-1/4" X 23-1/2"
Spindle feeds:
(8) .001 TO .0012 IPR
Spindle speeds:
(20) 50 TO 2000 RPM
Spindle travel:
6"
Boring capacity:
9"
Taper in spindle:
#4 MT
Maximum under spindle:
25"
Distance between housings:
34-1/4"
Longitudinal table travel:
24"
Drilling capacity cast iron:
2"
Drilling capacity mild steel:
1-1/2"
Subcategory:
Jig borer

Description

SERIAL ............................... 821
MODEL ................................ MP-4G
DRILLING CAPACITY CAST IRON .......... 2"
DRILLING CAPACITY MILD STEEL ......... 1-1/2"
BORING CAPACITY ...................... 9"
AREA OF TABLE ........................ 27-1/4" X 23-1/2"
SPINDLE SPEEDS ....................... (20) 50 TO 2000 RPM
SPINDLE FEEDS ........................ (8) .001 TO .0012 IPR
SPINDLE TRAVEL ....................... 6"
LONGITUDINAL TABLE TRAVEL ............ 24"
VERTICAL TRAVEL OF RAIL ON COLUMN .... 20"
HORIZONTAL TRAVEL OF HEAD ON RAIL .... 22"
MAXIMUM UNDER SPINDLE ................ 25"
DISTANCE BETWEEN HOUSINGS ............ 34-1/4"
TAPER IN SPINDLE ..................... #4 MT
3 AXIS DIGITAL READOUTS (SPINDLE/TABLE/HEAD)
POWER TABLE/RAIL/HEAD TRAVERSE
BUILT IN MEASURING SCREWS READING TO .00005"
POWER RAIL ELEVATION
