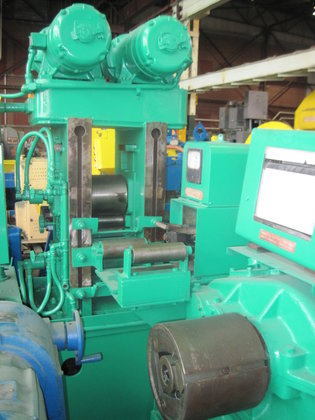

Waterbury Farrel 2-1/2" X 8"
Location:
Holland, OH
Manufacturer:
Farrel
Capacity:
060" DOWN TO .005" FINAL THICKNESS

Specifications

Condition:
used
Stock number:
18808
Rewinder:
10" FACE X 12" DIAMETER
Post size:
5-1/2" F-B X 4-3/4" WIDE
Line speed:
UP TO 600 FPM
Cooling pump:
1/2 HORSEPOWER
Work capacity:
060" DOWN TO .005" FINAL THICKNESS
Chart recorder:
SCROLL TYPE
Work roll face:
8"
Screwdown motors:
3/4 HORSEPOWER
Back up roll face:
8"
Motor - mill drive:
25 HORSEPOWER
Work roll diameter:
2-1/2"
Motor - rewind drive:
10 HORSEPOWER
Back up roll diameter:
8"
Rate of screwdown adjustment:
20 INCHES PER MINUTE
Subcategory:
Rolling mill

Description

SINGLE STAND WITH INTRICAL TAKE-UP COILER
WORK CAPACITY .............. .060" DOWN TO .005" FINAL THICKNESS
LOW CARBON STEEL & NON-FERROUS
WORK ROLL DIAMETER .................... 2-1/2"
WORK ROLL FACE ........................ 8"
BACK UP ROLL DIAMETER ................. 8"
BACK UP ROLL FACE ..................... 8"
RATE OF SCREWDOWN ADJUSTMENT........... .20 INCHES PER MINUTE
POST SIZE ............................. 5-1/2" F-B X 4-3/4" WIDE
LINE SPEED ............................ UP TO 600 FPM
DISTANCE BETWEEN WORK ROLL ATTAINABLE . 1" APPROXIMATELY (AS TOOLED)
MOTORIZED SCREWDOWNS
PRATT & WHITNEY THICKNESS GAUGE - S/N M-876 - MODEL #10A ANALOG DISPLAY
GRADUATIONS ARE IN .0001 INCREMENTS
UNIVERSAL WORK ROLL DRIVE
CONTROL PANEL
SPARE ROLLS
GEAR BOX WITH UNIVERSAL DRIVE TO WORK ROLLS ON MILL
MOTOR - MILL DRIVE .................... 25 HORSEPOWER
MOTOR - REWIND DRIVE .................. 10 HORSEPOWER
SCREWDOWN MOTORS ...................... 3/4 HORSEPOWER
COOLING PUMP .......................... 1/2 HORSEPOWER
WATER COOLED BACK UP ROLLS
ENTRY & EXIT SUPPORT ROLLS
TIMKIN ROLLER BEARINGS
CHART RECORDER ........................ SCROLL TYPE
REWINDER ................... 10" FACE X 12" DIAMETER
(COLLAPSING MANDREL - HYDRAULIC OPERATED)
GEAR BOX DRIVE & 4-SPEED TRANSMISSION WITH 633 RPM INPUT
210, 306, 435, 633 OUTPUT, VIA QUICK CHANGE LEVERS
HYDRAULIC EXPANSION
