Location:
Bensenville, IL
Model:
NEU 27-186

Specifications

Condition:
used
Stock number:
46534002
Sqft:
1882.4
Mounted:
Saddle Mounted
Tubemtl:
304 SS
Shellmtl:
CS
Year built:
2007
Tube length:
15-1/2"
Tube material:
304L Stainless Steel
Tube pressure:
150 psi
Shell material:
Carbon Steel
Shell pressure:
300 psi
Square footage:
1,882.4
Number of passes:
4
Tube temperature:
450 Degrees F
Overal dimensions:
259"L x 36"W X 98"T
Shell temperature:
500 Degrees F
National board no.:
3197
Size of tube openings:
3/4"
Horizontal or vertical:
Horizontal
Number of tube openings:
312

Description

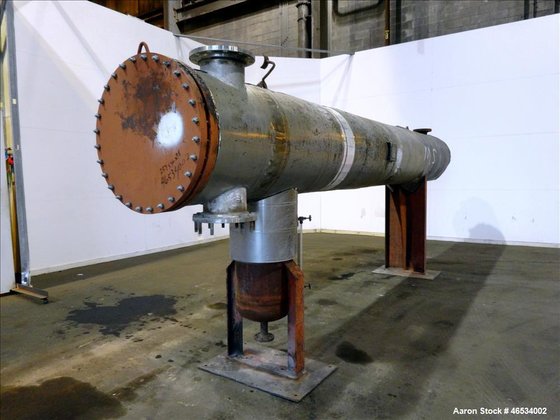

46534002 Used- Harris Thermal Transfer Products 4 Pass U Tube Shell & Tube Heat Exchanger, 1,882.4 Square Feet, Size 27-186, Type NEU, Horizontal. Carbon steel shell rated 300 psi at -20 to 500 degrees F. (312) 3/4" Diameter x approximate 15-1/2" long 304 stainless steel tubes rated 150 psi at -20 to 450 degrees F., 304L stainless steel tubesheet. Openings for tubes (2) 10", shell 2", 6". Mounted on saddles. Serial# 24667, National Board# 3197, built 2007.
