Location:
Bensenville, IL
Manufacturer:
EnviroSep
Model:
2S-MW-CF1
Size:
1"

Specifications

Condition:
used
Serial number:
50865-2
Stock number:
46500001
Bottom:
Coned Bottom
Gallons:
70
Mounted:
Base Mounted
Diameter:
24"
Mixer type:
3 Blade Prop
Year built:
2008
Agitator hp:
0.33
Outlet size:
1"
Agitator rpm:
1730
Agitator type:
Top Entering
Straight side:
36"
Agitator cycle:
60
Agitator model:
FDV-033
Agitator phase:
3
Top head style:
Flat Top
Outlet location:
Bottom
Agitator voltage:
208-230/460 Volt
Agitator location:
Top Offset
Overal dimensions:
74"L x 60"W x 78"T
Agitator manufacturer:
Sharpe
Horizontal or vertical:
Vertical
Material of construction:
304 Stainless Steel
Subcategory:
0 to 499 gallons
Subcategory 2:
Stainless steel tanks

Description

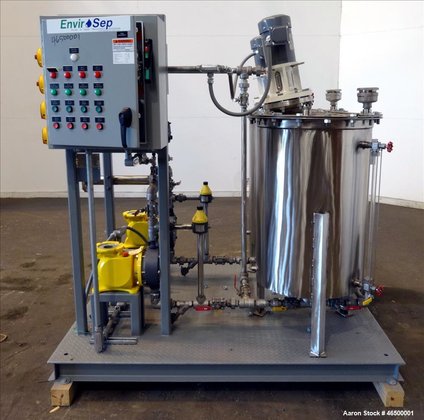

46500001 Used- EnviroSep Packaged Mixing & Pumping System, Model 2S-MW-CF1. Consists of: (2) Tanks, each approximate 70 gallon, 304 stainless steel, vertical. 24" Diameter x 36" straight side, flat top with a 1/4 hinged bolt on cover, coned bottom. (2) Off center top entering Sharpe FDV-033 agitators, (2) 5/8" diameter shafts with 3 blade props. Each driven by a 0.33hp, 3/60/208-230/460 volt, 1730 rpm motors, serial #s 50865-2, and 50865-6. Top openings (3) 1", 6", side (2) 1". 1" Center bottom outlet. Each mounted on 3 stainless steel legs. (2) Milton Roy SG73J9PPM chemical dosing pumps, rated 300 gallons per hour, driven by 1hp, 3/60/208-230/460 volt, 1725 rpm motors, serial #s 02693348-1, and 02693348-2. Includes a control panel, miscellaneous piping, and valve. Mounted on carbon steel skid. Serial# 7120017-4. Built 2008.
