Top Seller
1980 24" X Trvl 16"
Location:
Harrison, NJ
Price:
$6,950 USD
Manufacturer:
Cleereman
Model:
28"

Specifications

Condition:
used
Year:
1980
Serial number:
65232
Stock number:
111785
Feeds:
005 TO .045IPR
Main motor:
7.5 HP 460/3/60
Spindle taper:
#4 MORSE
Spindle speeds:
50 - 1000 RPM
Dia. of spindle:
3-3/4"
Travel of spindle:
10"
T-slotted table dimensions:
16" x 29-1/2"
Max. distance spindle to table:
24"
Face of column to center of spindle:
14"
Subcategory:
Layout drills

Description

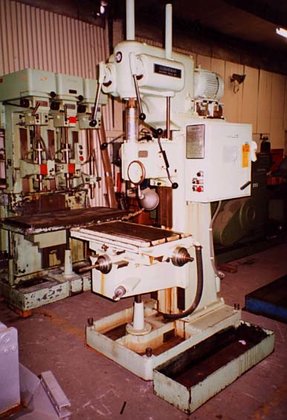

CLEERMAN HEAD SINGLE SPINDLE UPRIGHT DRILL PRESS
S/N: 65232
SPECIFICATIONS:
DIA. OF SPINDLE ......................... 3-3/4"
SPINDLE TAPER ........................... #4 MORSE
TRAVEL OF SPINDLE ....................... 10"
SPINDLE SPEEDS .......................... 50 - 1000 RPM
FEEDS ................................... .005 TO .045IPR
T-SLOTTED TABLE DIMENSIONS .............. 16" x 29-1/2"
ADJUSTABLE UP & DOWN MOVEMENT OF TABLE .. 12"
FACE OF COLUMN TO CENTER OF SPINDLE ..... 14"
MAX. DISTANCE SPINDLE TO TABLE .......... 24"
MAIN MOTOR .............................. 7.5 HP 460/3/60
EQUIPPED WITH:
PUSHBUTTON CONTROLS
COOLANT
POWERFEED TO SPINDLE
