Top Seller
50 Ton 12" Stroke Pressmaster
Location:
Harrison, NJ
Price:
$42,500 USD
Manufacturer:
Pressmaster
Model:
CFP-50
Stroke:
12"

Specifications

Condition:
used
Serial number:
N/A
Stock number:
124249
Width:
31"
Throat:
13"
Weight:
6,600#
Age info:
NEW
Daylight:
18"
Clearance:
6"
Press speed:
31 IPM
Return speed:
219 IPM
Front to back:
58"
Approach speed:
181 IPM
Floor to table:
36"
U-slot opening:
4"
Height (overall):
89"
Voltage available:
230/ 460/ 575/ 3 PH. 60 HZ
Motor hp @ 1750 rpm:
10 HP
Shipping dimensions:
66"L x 52"W x 96"H
Max. stroke adjustable:
12"

Description

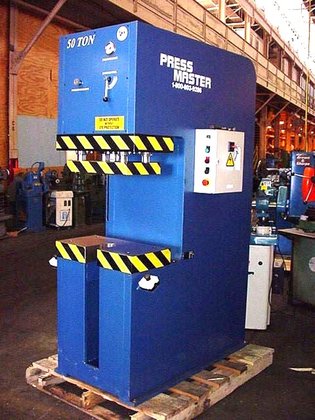

50 TON PRESSMASTER C-FRAME HYDRAULIC PRESS
MODEL CFP-50 BRAND NEW - STILL IN CRATE
TONS OF FORCE ......(MAX).................... 50 TONS
APPROACH SPEED .............................. 181 IPM
PRESS SPEED ................................. 31 IPM
RETURN SPEED ................................ 219 IPM
TABLE ..............(LR X FB)................ 26" X 20"
DAYLIGHT .................................... 18"
MAX. STROKE ADJUSTABLE ...................... 12"
THROAT ...................................... 13"
U-SLOT OPENING .............................. 4"
FLOOR TO TABLE .............................. 36"
FRONT TO BACK................................ 58"
HEIGHT (OVERALL)............................. 89"
CLEARANCE ................................... 6"
WIDTH ....................................... 31"
UPPER PLATEN .......(LR X FB)................ 26" X 20"
MOTOR HP @ 1750 RPM ......................... 10 HP
VOLTAGE AVAILABLE: 230/ 460/ 575/ 3 PH. 60 HZ
STANDARD FEATURES:
- PRESSURE GAUGE
- PRESSURE REGULATOR
- ADJUSTABLE SPEED CONTROL
- ADJUSTABLE STROKE CONTROL
- PRESSURE REVERSAL SWITCH
- RAM TRAVEL IS GUIDED BY 4 PRECISION-GROUND CHROMED RODS
- JOG MODE USED FOR SIMPLIFYING SETUPS
- DUAL CONTROL-YOUR CHOICE OF USING:
(1) MOVEABLE PEDESTAL C/W DUAL ELECTRIC PALM BUTTONS & EXTRA EMERGENCY STOP
OR (2) FOOT PEDAL
- P.L.C. PROGRAMMABLE CONTROL SYSTEM
- QUALITY BALDOR MOTOR, LOW SPEED
- AIR-COOLED INDUSTRIAL OIL COOLER
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE
THROUGHOUT NORTH AMERICA
WEIGHT ...................................... 6,600#
SHIPPING DIMENSIONS ......................... 66"L x 52"W x 96"H
