1967 18" X Axis 11"
Location:
Harrison, NJ
Manufacturer:
Moore
Model:
#3
Capacity:
5/32" TO 5"
Weight:
4,000 LBS.

Specifications

Condition:
used
Year:
1967
Serial number:
B-1194
Stock number:
141260
Max:
20- 13/16"
Category 2:
CNC Machines
Table size:
11" X 24" TABLE
Approx. weight:
4,000 LBS.
Boring capacity:
5/32" TO 5"
Approx. dimensions:
58" X 60" X 89"H
Cross table travel:
11"
Feeds per rev. (3):
0.000075", .0015" & .003"
Spindle quill travel:
5"
Spindle housing travel:
12"
Spindle to column ways:
10"
Longitudinal table travel:
18"
Table top to spindle, min:
3- 7/8"
Spindle to column below ways:
13- 3/4"
Infinitely variable spindle speeds:
60 TO 2,250 RPM
Subcategory:
Cnc jig borers

Description

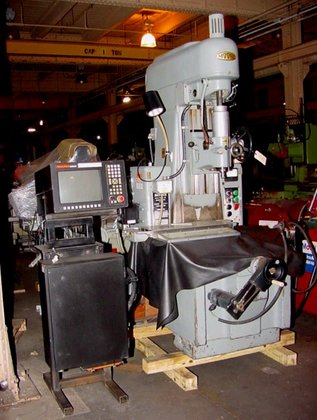

MOORE #3 JIG BORER
** ANILAM 3200 MK 3-AXIS CNC CONTROL INSTALLED NEW IN 2001)
MODEl: B-18 S/N: B-1194 NEW: 1967
TABLE SIZE ............................... 11" X 24" TABLE
LONGITUDINAL TABLE TRAVEL ................ 18"
CROSS TABLE TRAVEL ....................... 11"
SPINDLE HOUSING TRAVEL ................... 12"
SPINDLE QUILL TRAVEL ..................... 5"
TABLE TOP TO SPINDLE, MIN. ............... 3- 7/8"
MAX. ............... 20- 13/16"
SPINDLE TO COLUMN WAYS ................... 10"
SPINDLE TO COLUMN BELOW WAYS ............. 13- 3/4"
BORING CAPACITY .......................... 5/32" TO 5"
INFINITELY VARIABLE SPINDLE SPEEDS ....... 60 TO 2,250 RPM
FEEDS PER REV. (3) .............. 0.000075", .0015" & .003"
APPROX. WEIGHT ........................... 4,000 LBS.
APPROX. DIMENSIONS ..................... 58" X 60" X 89"H
MACHINE FEATURES:
HARDENED WAYS
HARDENED, GROUND & LAPPED LEADSCREWS
TWO-SPEED MOTOR (1 H.P. & 2 H.P.)
MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLTS/5 AMP SERVICE
REQUIRED
EQUIPPED WITH:
"ANILAM" 3200MK 3-AXIS CNC CONTROL INSTALLED IN 2001
SPECIAL NOTE:
MOORE TOOLING AVAILABLE TO PURCHASE WITH THIS MACHINE.
** VERY GOOD CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT IN OUR HARRISON, N.J. WAREHOUSE **
