Top Seller
1976 5" Spindle 120" X
Location:
Harrison, NJ
Price:
$49,500 USD
Model:
J
Spindle Diameter:
5"

Specifications

Condition:
used
Year:
1976
Serial number:
J-285
Stock number:
141709
Table size:
60" x 135"
Head & table:
5 - 120 IPM
Length of bed:
132"
Saddle travel:
65"
Spindle taper:
#50 STD
Spindle travel:
36"
Spindle & saddle:
05 - 60 IPM
Spindle diameter:
5"
Cross table travel:
120"
Maximum table load:
60,000 LBS
Height to top of column:
156"H
Spindle speed range(27):
10 - 1,000 RPM
Vertical headstock travel:
84"

Description

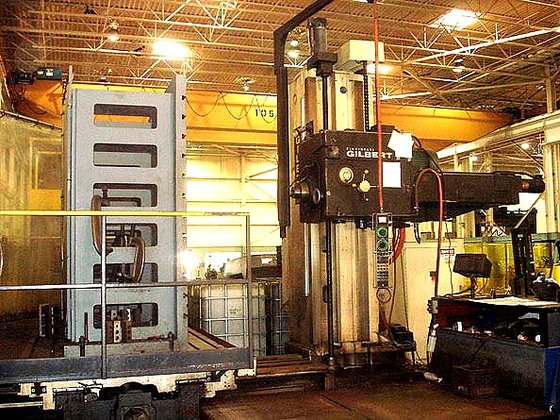

5" CINCINNATI - GILBERT
HORIZONTAL TABLE TYPE BORING MILL
MODEL: J, S/N: J285 , YEAR: 1976
SPECIFICATIONS:
SPINDLE DIAMETER .......................... 5"
SPINDLE TAPER ............................. #50 STD
SPINDLE TRAVEL ............................ 36"
VERTICAL HEADSTOCK TRAVEL ................. 84"
CROSS TABLE TRAVEL ........................ 120"
SADDLE TRAVEL ............................. 65"
TABLE SIZE ................................ 60" x 135"
MAXIMUM TABLE LOAD ........................ 60,000 LBS
SPINDLE SPEED RANGE(27) ................... 10 - 1,000 RPM
FEED RANGES:
SPINDLE & SADDLE .......................... .05 - 60 IPM
HEAD & TABLE .............................. .5 - 120 IPM
LENGTH OF BED ............................. 132"
HEIGHT TO TOP OF COLUMN ................ 156"H
EQUIPPED WITH:
THREE AXIS
ACURITE
DIGITAL READOUT
FULL PENDANT CONTROL
#50 TAPER POWER DRAW BAR
HARDENED BED & SADDLE WAYS
THREE WAY COLUMN
OUTRIGGER SADDLE SUPPORTS
BALL SCREWS ALL AXES
RAPID TRAVERSE ALL AXES
AUTO LUBRICATION SYSTEM
COOLANT SYSTEM
30 HORSE POWER MAIN MOTOR
