Boyar-Schultz HIGH SPEED ID GRINDING

Boyar-Schultz HIGH SPEED ID GRINDING ATTACHMENT GRINDER ATTACHMENT, FOR SURFACE GRINDERS in Harrison, NJ

Location:
Harrison, NJ
Manufacturer:
Boyar-Schultz
Model:
HIGH SPEED ID GRINDING ATTACHMENT

Specifications

Condition:
used
Stock number:
141799
Category 2:
Tooling & Accessories

Description

HIGH SPEED GRINDING ATTACHMENT
FOR SURFACE GRINDERS
DESIGNED FOR:
1) GRINDING ANGLES OR SLOTS TOO SMALL TO PERMIT THE USE OF
STANDARD SIZE WHEELS.
2) FOR GRINDING SERATIONS, T-SLOTS AND MANY OTHER HARD TO
GET AT SURFACES.
3) PROVIDES HIGHER SPEED THAN IS POSSIBLE WITH A REGULAR
SURFACE GRINDER SPINDLE.
4) ALSO CAN BE USED TO GRIND SMALL RADII, SMALL CONTOURS IN
DIE BLOCKS AND OTHER PARTS REQUIRING THIS TYPE OF GRINDING.
SPINDLE:
DESIGNED AND MANUFACTURED TO MAINTAIN LONG, ACCURATE LIFE.
IT IS EQUIPPED WITH PERMANENTLY LUBRICATED, PRELOADED,
SUPER PRECISION BALL BEARINGS.
MOUNTING:
ATTACHMENT IS EASILY MOUNTED ON SURFACE GRINDER SPINDLE
HOUSING. ECCENTRIC BUSHING SERVES TO ADJUST BELT TENSION.
BUSHINGS ARE AVAILABLE FOR MOUNTING UNIT ON EITHER 6 x 12
OR 6 x 18 BOYAR-SCHULTZ SURFACE GRINDERS. BUSHINGS COULD
BE MADE TO MOUNT THIS ATTACHMENT ON OTHER BRANDS OF SURFACE
GRINDERS.
SPEED:
SPINDLE SPEED OF ATTACHMENT IS 14,000 RPM WHEN DRIVEN BY A
SPINDLE SPEED OF 3000 RPM.
QUILLS:

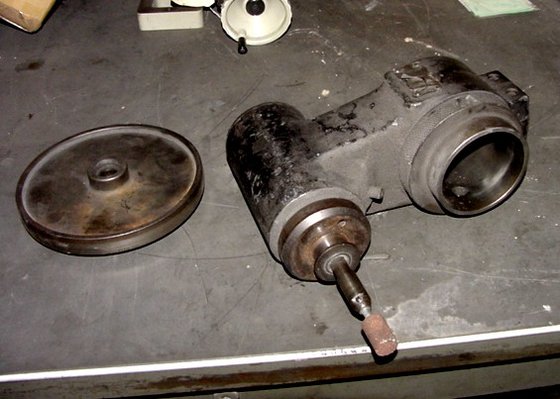

COMES WITH ONE QUILL, AS SHOWN IN THE PHOTOS.
