Top Seller
1982 90 Ton 120" Bed
Location:
Harrison, NJ
Price:
$17,500 USD
Manufacturer:
Dreis & Krump
Model:
810L
Stroke:
3"
Capacity:
10' x 10 ga

Specifications

Condition:
used
Year:
1982
Serial number:
L20783
Stock number:
143527
Speed:
40 / 5 SPM
Stroke:
3"
Throat:
8"
Dimensions:
144" LR x 60" W x 96" High
Open height:
15"
Bending capacity:
10' x 10 ga
Overall bed size:
120"
Motorized ram adj:
4"
Approximate weight:
14,500 Lbs.
Distance between housings:
8'6"
Tonnage near bottom of stroke:
90 tons

Description

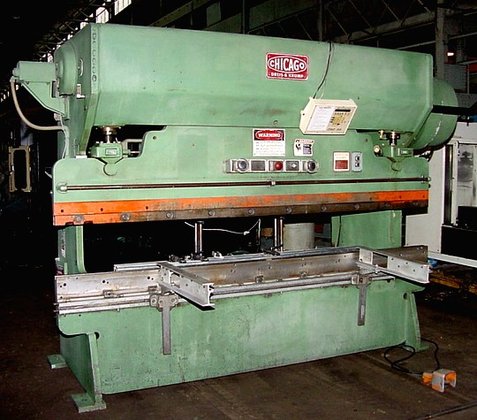

90 TON CHICAGO DREIS & KRUMP MECH. PRESS BRAKE
MODEL 810-L S/N L-20783 NEW 1982
TONNAGE NEAR BOTTOM OF STROKE ................ 90 tons
BENDING CAPACITY ............................. 10' x 10 ga
8' x 3/16"
5' x ¼"
OVERALL BED SIZE ............................. 120"
DISTANCE BETWEEN HOUSINGS .................... 8'6"
STROKE ....................................... 3"
MOTORIZED RAM ADJ. ........................... 4"
SPEED ........................................ 40 / 5 SPM
OPEN HEIGHT .................................. 15"
THROAT ....................................... 8"
EQUIPPED WITH:
- AUTOMEC AUTOGAUGE CNC-99 FRONT OPERATED POWER BACK GAUGE
- AIR CLUTCH
- FOOT PEDAL
- PALM BUTTONS
- 2 SPEED HI/LOW SELECT-A-SPEED
- MOTORIZED RAM ADJUSTMENT
- 5 H.P. 3/60/230-460 VOLT MOTOR (CURRENTLY 460)
APPROXIMATE WEIGHT: 14,500 Lbs.
DIMENSIONS: 144" LR x 60" W x 96" High
TO SEE A VIDEO OF THIS MACHINE CUT & PASTE THE FOLLOWING
LINK!!
