Top Seller
1983 20" Swing 1.5HP Spindle
Location:
Harrison, NJ
Price:
$1,750 USD
Manufacturer:
Rockwell presses
Model:
70-330 Model 20

Specifications

Condition:
used
Year:
1983
Serial number:
85A75001
Stock number:
139162
Steel:
1"
Cast iron:
1-1/8" DIA
Condition 2:
**** EXCELLENT ****
Spindle taper:
#3 MORSE
Spindle travel:
6"
Approximate weight:
750 LBS.
Base working surface:
13-1/2" X 14-3/4"
Overall size of table:
19-1/2" X 22"
Approximate dimensions:
22" X 31" X 75"
Working surface of table:
15" X 18"
Drills to center of circle:
20" DIAMETER
Max distance spindle to base:
44"
Spindle speed range, inf var:
125 TO 1250 RPM
Max distance spindle to table:
34"

Description

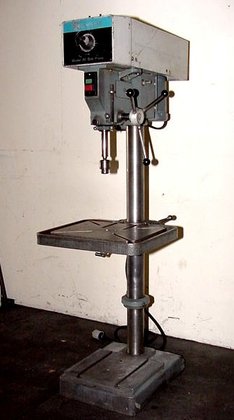

20" ROCKWELL VARIABLE SPEED DRILL PRESS,
MODEL 70-330, S/N 83A75001, NEW 1983
SPECIFICATIONS:
CAPACITY:
CAST IRON .......................... 1-1/8" DIA
STEEL .............................. 1"
DRILLS TO CENTER OF CIRCLE ............ 20" DIAMETER
OVERALL SIZE OF TABLE ................. 19-1/2" X 22"
WORKING SURFACE OF TABLE .............. 15" X 18"
SPINDLE TAPER ......................... #3 MORSE
SPINDLE TRAVEL ........................ 6"
MAX DISTANCE SPINDLE TO TABLE ......... 34"
MAX DISTANCE SPINDLE TO BASE .......... 44"
BASE WORKING SURFACE .................. 13-1/2" X 14-3/4"
SPINDLE SPEED RANGE, INF VAR .......... 125 TO 1250 RPM
APPROXIMATE DIMENSIONS ................ 22" X 31" X 75"
APPROXIMATE WEIGHT .................... 750 LBS.
EQUIPPED WITH:
* MANUALLY OPERATED RATCHET-TYPE MECHANISM FOR RAISING/LOWERING OF TABLE
* T-SLOTTED TABLE & BASE
* WORKLIGHT
1-1/2 H.P. 3 PHASE, 60 CYCLE, 220/440 VOLT 1725 R.P.M.
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** EXCELLENT ****
