1982 31.5" Chuck 15HP Spindle
Location:
Harrison, NJ
Manufacturer:
ELB grinding machines
Model:
SWR80NC-K
Weight:
15,000 LBS.

Specifications

Condition:
used
Year:
1982
Serial number:
176780382
Stock number:
148237
Control panel:
60" x 36"W x 79"H
Diameter of chuck:
31.5"
Swing inside guards:
45"
Approx. machine size:
12'4" x 4'w x 8'4"
Incremental downfeed:
0.0001" TO .0025"
Approx. machine weight:
15,000 LBS.
Rapid vertical traverse:
8" IPM
Variable (inches per minute):
4" TO 40"
Infinitely variable table speeds:
20 TO 65 RPM
Height under new 16" diameter wheel:
16"

Description

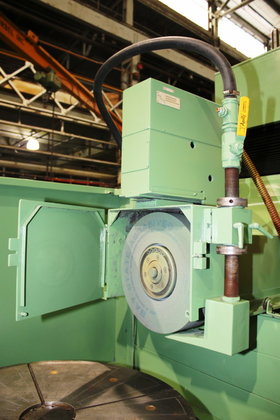

31.5" ELB "HIGH-PRECISION" HORIZONTAL SPINDLE
ROTARY SURFACE GRINDER (MADE IN GERMANY)
MODEL: SWR 80T NC-K S/N: 176780382 NEW: 1982
DIAMETER OF CHUCK ............................. 31.5"
SWING INSIDE GUARDS ........................... 45"
HEIGHT UNDER NEW 16" DIAMETER WHEEL ........... 16"
INFINITELY VARIABLE TABLE SPEEDS .............. 20 TO 65 RPM
CONTINUOUS CROSS FEED, FEED RATE INFINITELY
VARIABLE (INCHES PER MINUTE) ................ 4" TO 40"
RAPID VERTICAL TRAVERSE ....................... 8" IPM
INFINITELY VARIABLE AUTOMATIC
INCREMENTAL DOWNFEED ........................ 0.0001" TO .0025"
APPROX. MACHINE SIZE .......................... 12'4" x 4'w x 8'4"
CONTROL PANEL ................................. 60" x 36"W x 79"H
APPROX. MACHINE WEIGHT ........................ 15,000 LBS.
EQUIPPED WITH:
-PROGRAMMABLE AUTO CYCLE CONTROLLER ... SYSTEM INCLUDES
DIGITAL READOUT DISPLAY & THUMB WHEEL CONTROLLED
PRE-DIMENSION& FINISH SETTINGS, INCLUDING +/-
CORRECTION, PRESETTING& ZERO BUTTON, AUTOMATIC DOWNFEED
&SPARKOUT TIMER. RETRACT OF SPINDLE TO START
POSITION @ COMPLETION OF CYCLE.
-PROGRAMMABLE AUTO WHEEL DRESSING W/COMPENSATION.
DRESSING& COMPENSATION TAKE PLACE EACH TIME @
PRE-DIMENSION AUTOMATICALLY @ CYCLE OR PUSH BUTTON
CONTROLLED WITHIN GRINDING CYCLE. THIS AMOUNT IS
AUTOMATICALLY ADDED TO THE READOUT DISPLAY.
TRAVELLING COLUMN DESIGN
16" DIAMETER x 4"W GRINDING WHEEL
31.5" ELECTRO-MAGNETIC CHUCK
45" SWING
16" WORK CAPACITY UNDER A NEW 16" WHEEL
VARIABLE HOLD NEUTROFIER CONTROL
FULL AUTO CYCLE PENDANT CONTROL (ALL MACHINE FUNCTIONS)
POWER OVER THE WHEEL DRESSER
TABLE DRIVE IS PROVIDED BY ELECTRIC D.C. MOTOR DRIVE
CROSS FEED IS PROVIDED BY ELECTRIC D.C. MOTOR DRIVE
AUTOMATIC CENTRAL LUBRICATION
COOLANT SYSTEM WITH PAPER FILTRATION
15 H.P./3/60/460 VOLT DIRECT DRIVE SPINDLE
MACHINE IS WIRED FOR 3/60/460 VOLTS
** MACHINE HAS BEEN SERVICED BY OUR GOOD FRIEND, MR.SEMYON VALSHTEIN.
SEMYON IS AN ELB TECHNICIAN/SPECIALIST. **
** PARTS & SERVICE ARE AVAILABLE FROM ELB AMERICA, INC.
IN CHARLOTTE, N.C., FROM SEMYON VALSHTEIN, OR FROM THE ELB FACTORY IN GERMANY **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
*** EXCELLENT CONDITION, MACHINE HAS BEEN FULLY SERVICED, CLEANED
& PAINTED. IT IS 100% OPERATIONAL, READY FOR DELIVERY ***
