1981 6.5" Dia 16" Stroke
Location:
Harrison, NJ
Manufacturer:
Sunnen
Model:
MBC-1801-D
Weight:
1100 LBS.

Specifications

Condition:
used
Year:
1981
Serial number:
81974
Stock number:
147775
Sized up to:
10"
Length range:
OPEN BORES CAN BE AUTOMATICALLY
Approx.weight:
1100 LBS.
(8) stroking rages:
80-310 SPM
(12) spindle speeds:
200-2500 RPM
Or manually stroked up to:
16"
Subcategory:
Hones

Description

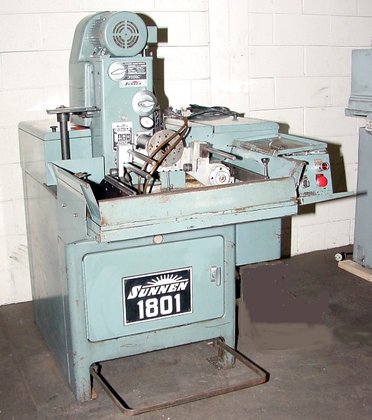

SUNNEN HONE WITH AUTO CYCLE & POWER STROKING
MODEL: MBC-1801 D S/N: 81974 NEW: 1981
INTERNAL WORK DIA.RANGE WITH AUTO. SIZING....1/8" TO 2
INTERNAL WORK DIA.RANGE WITH POWER STROKE... 0.060 TO 3-3/4"
INTERNAL WORK DIA. RANGE WITH POWER STROKE.. 0.060 TO 6.5"
LENGTH RANGE: OPEN BORES CAN BE AUTOMATICALLY
SIZED UP TO................................ 10"
OPEN OR BLIND HOLES CAN BE POWER STROKED
OR MANUALLY STROKED UP TO.................... 16"
(8) STROKING RAGES........................... 80-310 SPM
(12) SPINDLE SPEEDS.......................... 200-2500 RPM
APPROX.WEIGHT ............................... 1100 LBS.
EQUIPPED WITH:
POWER STROKING
MANUAL OR AUTOMATIC CYCLE MODES OFOPERATION WITH AUTOMATIC
MACHINE SHUT-OFF
SELF CONTAINED COOLANT SYSTEM
1 H.P./3/60/230-460 VOLT SPINDLE MOTOR
1/2 HP COOLANT PUMP MOTOR
3/60/230-460 VOLT MOTORS
MACHINE IS PRESENTLY WIRED FOR 230 VOLTS
* * * ORIGINAL PAINT; EXCELLENT CONDITION & APPEARANCE * * * * * * LOCATION: HARRISON, N.J. * * *
