Top Seller
1986 30" Screen Jones &
Location:
Harrison, NJ
Manufacturer:
Jones & Lamson
Model:
EPIC -130

Specifications

Condition:
used
Year:
1986
Serial number:
E-67081
Stock number:
143135
Maximum:
8- 1/4""
Minimum:
2- 1/4"
Vertical:
6"
Longitudinal:
8"
Machine weight:
2,500 LBS
Screen diameter:
30"
Approx. dimensions:
61" L-R, 119" F-B, 83" H
Size of work table:
6" X 30"
Cross travel for focusing:
1.5"
Angular measuring capacity:
360 DEG. CHART ROTATION
Subcategory:
Inspection
Subcategory 2:
Comparators

Description

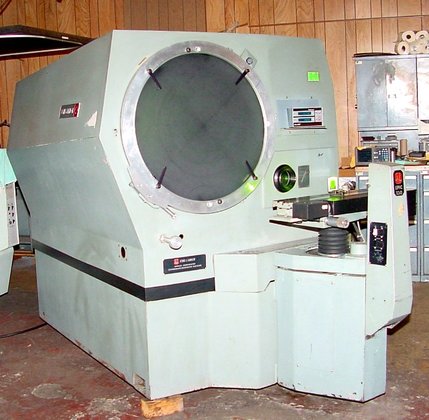

30" JONES & LAMSON (MADE IN USA)
OPTICAL COMPARATOR & MEASURING MACHINE
MODEL: EPIC-130 S/N: E67031 NEW: 1986
SCREEN DIAMETER ................................ 30"
SIZE OF WORK TABLE ........................... 6" X 30"
MEASURING CAPACITY (TRAVEL OF WORK TABLE)
LONGITUDINAL .................................... 8"
VERTICAL ........................................ 6"
ANGULAR MEASURING CAPACITY...... 360 DEG. CHART ROTATION
HELIX ANGLE ADJUSTMENT (TABLE SWIVELS, L&R)...... 10 DEG
CROSS TRAVEL FOR FOCUSING ....................... 1.5"
DISTANCE, LENS CENTERLINE TO TABLE:
MAXIMUM ......................................... 8- 1/4""
MINIMUM ......................................... 2- 1/4"
APPROX. DIMENSIONS ............. 61" L-R, 119" F-B, 83" H
MACHINE WEIGHT ............................... 2,500 LBS
EQUIPPED WITH:
"ACU-RITE" 2-AXIS DIGITAL READOUT
NOVA-LITE PROJECTION
MERCURY ARC LIGHTING
SINGLE SPINDLE TABLE DESIGN
6-POSITION POWER LENS TURRET
10X, 20X & 50X LENSES
TABLE POSITION INDICATOR
POWER TABLE TRAVERSE
POWER ELEVATION FOR TABLE
LIGHT VISOR
LAST CALIBRATED IN 2008
** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
