Top Seller
1973 5" Swing 12" Centers
Location:
Harrison, NJ
Model:
4252
Weight:
2,000 LBS.

Specifications

Condition:
used
Year:
1973
Serial number:
512H-689
Stock number:
148604
Grinding wheel:
10" X 1-1/2" X 3"
Swing over table:
5"
Hole thru draw bar:
1-1/8" DIA.
Approx. floor space:
61" X 48" X 61"H
Auto dwell of table:
0 TO 10 SECONDS
Maximum table travel:
14"
Hydraulic table speed:
0 TO 130" IPM
Approx. machine weight:
2,000 LBS.
Table swivels each way:
7-1/2 DEGREES
Workhead spindle center:
#2MT
Tailstock spindle center:
#2MT
Grinding wheel speeds (2):
2200 & 2600 RPM
Maximum distance between centers:
12"

Description

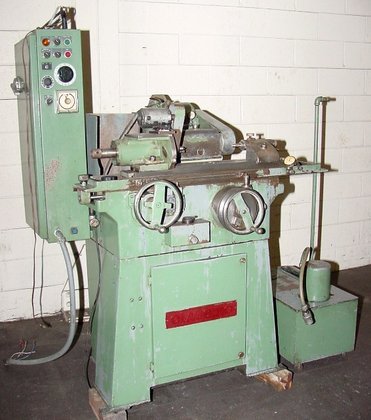

5" X 12" CLAUSING/COVEL PLAIN O.D. CYLINDRICAL GRINDER
MODEL: 4252 S/N: 512H-689 NEW: 1973
SWING OVER TABLE ................................... 5"
MAXIMUM DISTANCE BETWEEN CENTERS .................. 12"
MAXIMUM TABLE TRAVEL .............................. 14"
TABLE SWIVELS EACH WAY .................. 7-1/2 DEGREES
HYDRAULIC TABLE SPEED ................... 0 TO 130" IPM
AUTO DWELL OF TABLE ................... 0 TO 10 SECONDS
GRINDING WHEEL ...................... 10" X 1-1/2" X 3"
GRINDING WHEEL SPEEDS (2) ............. 2200 & 2600 RPM
INF. VARIABLE WORKHEAD SPINDLE SPEEDS .... 70 - 700 RPM
HOLE THRU DRAW BAR ........................ 1-1/8" DIA.
WORKHEAD SPINDLE CENTER .......................... #2MT
TAILSTOCK SPINDLE CENTER ......................... #2MT
APPROX. FLOOR SPACE .................. 61" X 48" X 61"H
APPROX. MACHINE WEIGHT ..................... 2,000 LBS.
EQUIPPED WITH:
POWER TABLE TRAVERSE
ADJUSTABLE TABLE DWELL W/TIMER
INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS
WORKHEAD ACCEPTS 5C COLLETS
DRAW BAR & 5C COLLT WITH A CENTER
WORKHEAD IS UNIVERSAL (SWIVELLING)
EXTERNAL COOLANT PUMP & TANK
3/60/220-440 VOLT MOTORS
* * VERY NICE CONDITION & APPEARANCE * *
*INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE*
