1975 12 24 Elite A.R.5-E
Location:
Harrison, NJ
Manufacturer:
Elite
Model:
A.R.5-E
Weight:
1,500 LBS.

Specifications

Condition:
used
Year:
1975
Serial number:
2733
Stock number:
148428
Table size:
3" X 24"
Cross travel:
5- 5/16"
Table travel:
11- 13/16"
Approx. weight:
1,500 LBS.
Vertical movement:
8- 1/4"
Approx. dimensions:
36"L-R x 44"F-B x 58"H
Grinding wheelhead:
6" DIAMETER WHEELS
Spindle speeds (3):
2,800, 5,000 & 7,500 RPM
Grinding wheel tilts:
PLUS/MINUS 20 DEG.
Handwheel graduations:
0.001"
Grinding wheel swivels:
180 DEGREES

Description

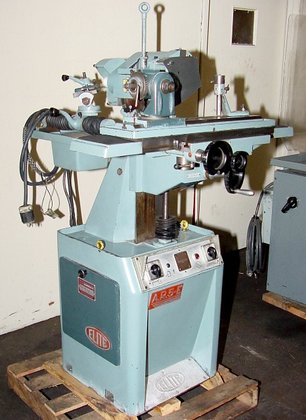

ELITE UNIVERSAL TOOL & CUTTER GRINDER
MODEL: A.R.5-E S/N: 2733 NEW: 1975
TABLE SIZE ....................... 3" X 24"
TABLE SWIVELS AT CENTER PIVOT .... YES
TABLE TRAVEL ..................... 11- 13/16"
CROSS TRAVEL ..................... 5- 5/16"
VERTICAL MOVEMENT ................ 8- 1/4"
HANDWHEEL GRADUATIONS ............ 0.001"
GRINDING WHEELHEAD ............... 6" DIAMETER WHEELS
SPINDLE SPEEDS (3) ............... 2,800, 5,000 & 7,500 RPM
GRINDING WHEEL SWIVELS ........... 180 DEGREES
GRINDING WHEEL TILTS ............. PLUS/MINUS 20 DEG.
APPROX. DIMENSIONS ............... 36"L-R x 44"F-B x 58"H
APPROX. WEIGHT ................... 1,500 LBS.
EQUIPPED WITH:
UNIVERSAL TOOL FIXTURE MOUNTED ON A SWING-AWAY BRACKET
WORKHEAD
TABLE MOUNTED WHEEL DRESSER
3/4 H.P./3/60/220-440 VOLT GRINDING WHEELHEAD MOTOR
** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
